    Welding Heavy Duty Steel Grating , Steel Stair Treads Grating Raw Material

    Machine Welding Heavy Duty Metal Grate Stair Treads For General Industries


    Metal Grate Stair Treads Description:

    Each product has a standard plain surface or may be specified with optional serrated or Algrip surfaces.
    Finish options include bare steel, painted, hot dip galvanized, or specialty coatings. The steel bar grating load tables provide detailed specification information related to these products.


    Metal Grate Stair Treads Specific application:

    Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:

    Metal Grate Stair Treads Features:

    Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.

    The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
    Hot-DIP galvanized treatment: Good rust-proof property, maintenance-free replacement.
    Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.
    Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
    High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
    Specifications: More specifications and sizes optional for meeting various environment, load, span, sizes and shapes.

    Metal Grate Stair Treads Surface Treatment:
    Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize the grating on their own.


    Metal Grate Stair Treads Specification:


    No.ItemDetailed Description
    1Bearing Bar25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
    US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
    2Bearing Pitch12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
    US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
    3Cross Bar Pitch38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
    4Steel GradeASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
    5Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating
    6Grating StylePlain / Smooth, Serrated /teeth, I bar, serrated I bar
    7Grating StandardChina: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
    UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

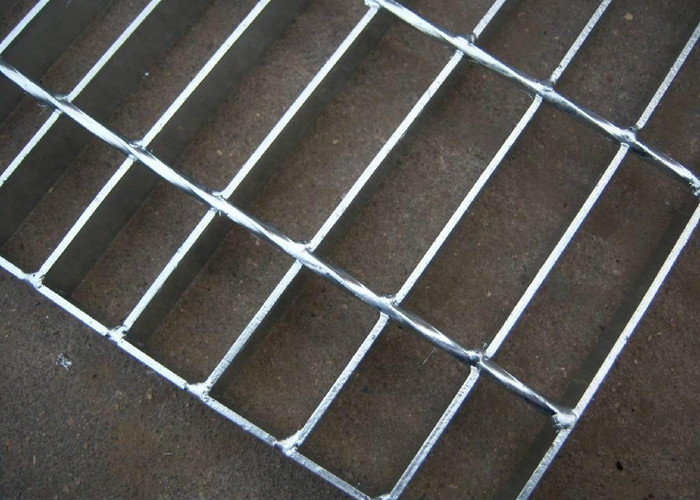

    Metal Grate Stair Treads Picture:
