ISO 9001:2015 Galvanized Steel Stair Treads Made By Steel Grating
Product Name:Galvanized Steel Stair Treads
Galvanized Steel Stair Treads Detail:
Steel stair treads grating have four type:T1 T2 T3 T4
Let me talk the the T2 first
Steel stair treads grating
Size:
760mm*260mm
790mm*300mm
890mm*300mm
1200mm*290mm,also can product other size,it is depend on the
customer requirement
Steel stair treads grating
Bearing bar size:30mm*3mm/30mm*4mm/25mm*4mm/32mm*5mm,
also can product other size,it is depend on the customer
requirement
Steel stair treads grating bearing bar
space:25mm/30mm/35mm/40mm,also can product
other size,it is depend on the customer requirement
Steel stair treads grating cross bar space:70mm/80mm/100mm,also can
product other
size,it is depend on the customer requirement
Raw Material:Q235(Mild Steel or Stainless Steel )
Side Plate:5mm or 6mm
Safety Tread:2.75mm/3.75mm
Surface treatment:Hot dip galvanized
Product date:with in 5-7days
Packaging:pallet
Checkered nosing metal stair tread is fabricated by grating, nosing plate and side plate.
Steel Galvanized Metal Grate Steps For Stairs, constructed with
holed and grooved side plates to ease
fixing to stringers. Treads are safe, self cleaning, skid resistant
and economical. A unique range of fittings to
enable the easy installation of flat Kick and Toe Boards to
standard handrail installations. Can be either
welded or fixed via a grub screw reducing installation time and
expense. Ideal for added protection and
security to handrail walkways.
Galvanized Steel Stair Treads Specification:
| Type | Specification | Cross Bar Width | Bearing Bar Length |
| TSSTG001 | G254/30/100 | 260mm | 760mm |
| TSSTG002 | G325/30/100 | 270mm | 790mm |
| TSSTG003 | G304/30/100 | 265mm | 800mm |
| TSSTG004 | G404/40/100 | 250mm | 840mm |
| TSSTG005 | G254/40/100 | 270mm | 800mm |
| TSSTG006 | G305/40/100 | 250mm | 900mm |
| TSSTG007 | G404/30/100 | 280mm | 870mm |
| TSSTG008 | G325/40/100 | 290mm | 860mm |
All the specification only part of the common specifications,the
bearing bar/bearing bar space,and the cross
bar space,all can change;our workshop can product the grating as
the customer requirement the steel stair
treads grating size and the cross bar change,also the space ,all
can change it,if you have any requirement
let me know
Galvanized Steel Stair Treads Application
Grating is widely used in steel structure walkway, foot pedal,
drain cover, commercial and industrial flooring.
It can take mirror to your floor. This sort of floor appears
timeless and classy for you .

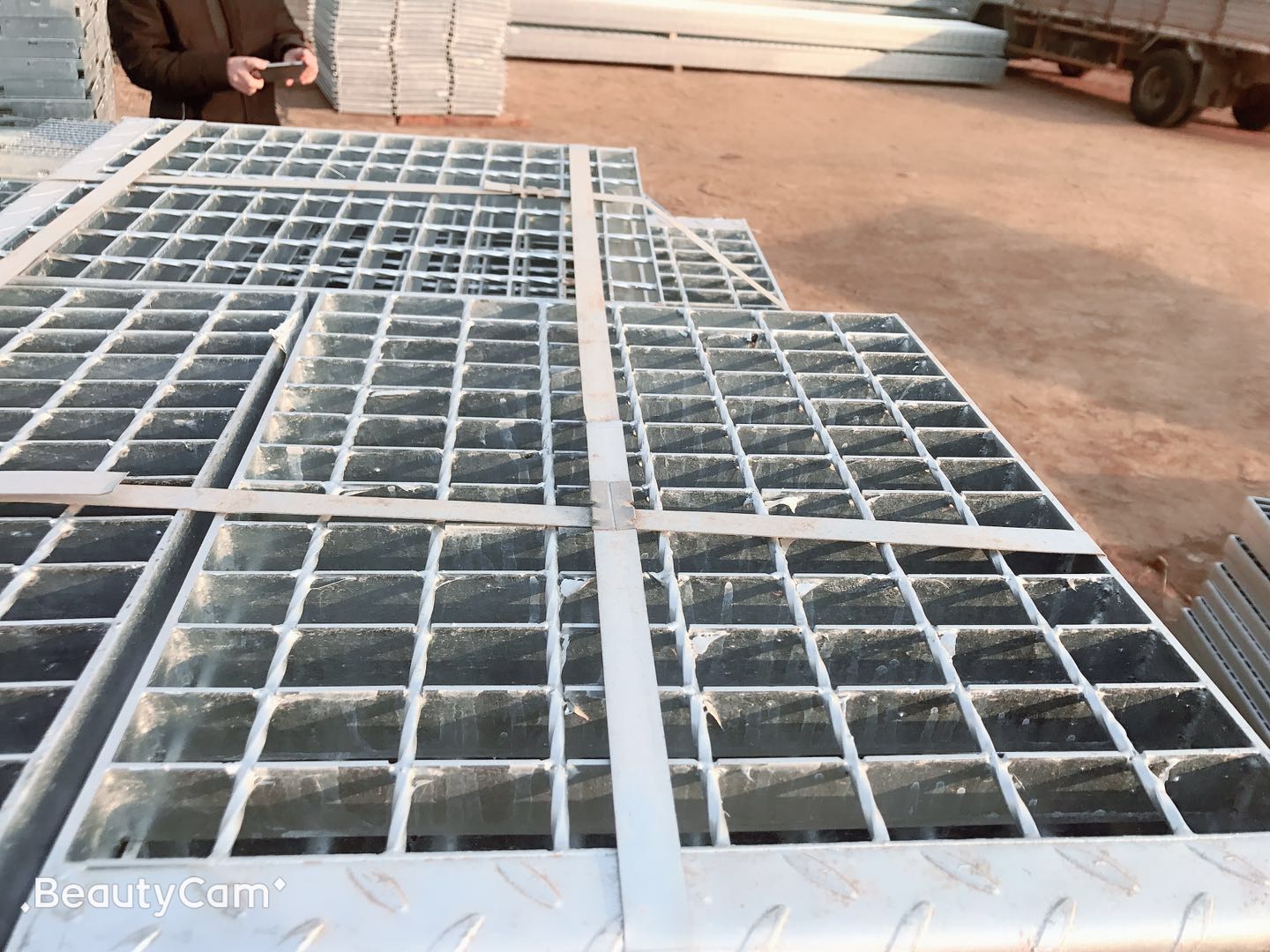

Galvanized Steel Stair Treads Picture
