Hot Dip Galvanized Press Lock Grating Used For Industrial Platform

Product Name:Press Lock Grating

Press Lock Grating Description:

Press locked grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process.

At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then

fixed it. Sometimes the horizontal pole also used flat steel.

Material: High-quality flat steel, stainless steel plate specification:

Size of bearing flat steel: 25x3mm, the center space: 30mm, 40mm, 50mm, 100mm.

Size of horizontal pole: 10x2mm, the center space : 50mm, 100mm.

Type of press-locked grating:

Common type: when the steel bearing flat-steel bar is low pressure lock steel mesh plate.

Integral type: Bearing flat-steel and crossbars flat-steel has the same height, cutting depth for bearing flat-

steel 1/2 of pressure lock steel mesh plate.

Sunshade type: Load flat steel to open 30 ° or 45 ° chute, flat bar slotted, and then press lock to form

grating.

Press Lock Grating Specification:

below is the press lock grating common specification,if your specification is not in the form

please let me know

All the specification only part of the common specifications,the bearing bar/bearing bar

space,and the cross bar space,all can change;our workshop can product the grating as

the customer requirement,the steel stair treads grating size and the cross bar change,also

the space ,all can change it,if you have any requirement let me know

Press Lock Grating Application:

Be widely used in civil and commercial building, theatres, subway, passenger such municipal engineering field, can be

used for interior decoration decorate condole top, platform footpath, ventilation windows(well), advertising plaque,

various cover plate, etc

Bearing Bar (Load Bar) (mm): 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x

5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

Bearing Bar Pitch (center to center): 12.5 to 100 mm etc, also be according to client's requirement and 30,

40, 60mm are recommended, America standard is available

Cross Bar Pitch (center to center): from18.5 to 101.6mm etc, also be according to client's requirement and

50, 100mm are recommended, America standard is available.

Steel Grating Material:Q235 Steel or stainless steel grating.

Steel Grating Surface Treatment: Untreated, Painting or Hot Dipped Galvanizing

Quality Standard:

Steel Grating Standard: China YB/T4001-1998

America ANSI/NAAMM (MBG531-88)

Britain BS4592-1987

Australia AS1657-1992

Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)

Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729

Application of Steel Grating: Floor;Catwalk;Mezzanines/decking;Stair tread;Fencing;Vault bin

floor;Ramp;Dock/Warehouse;all kinds of trench cover;Window and machinery safe guards;Wash

rack;Ventilation screen;Storage rack;Suspended ceiling;Drainage pit cover,etc

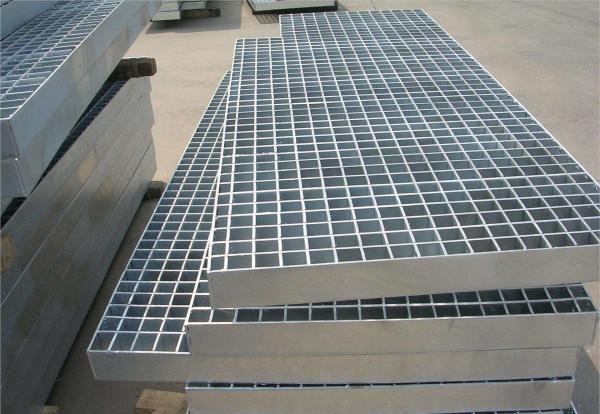

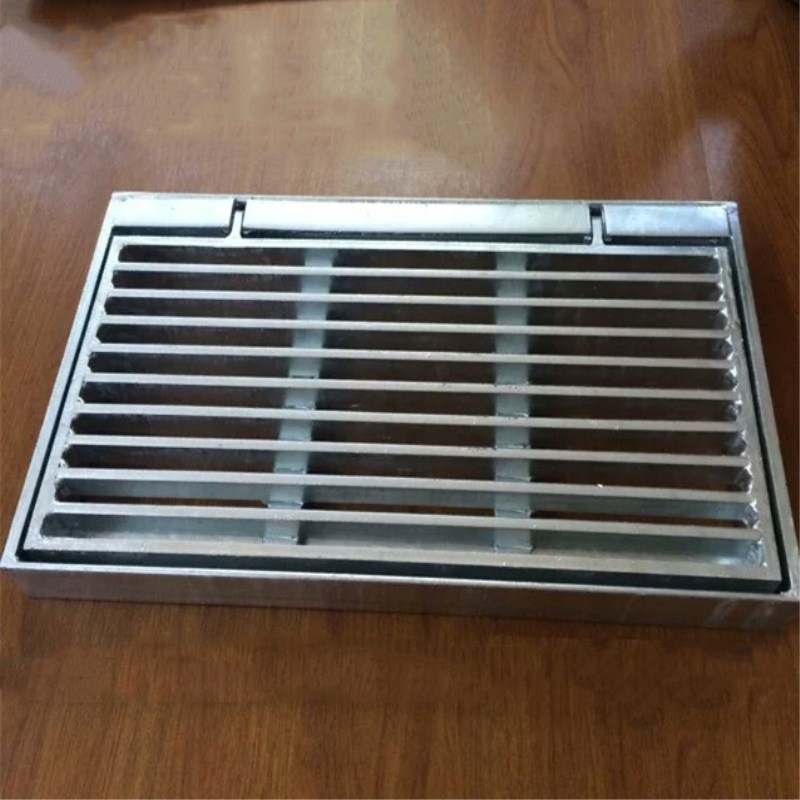

Press Lock Grating Picture
