Serrated Welded Steel Bar Grating Used For Industrial Metal Floor Grates

Product Name:Serrated Welded Steel Bar Grating

Serrated Welded Steel Bar Grating Detail:

"TT" brand steel grating is widely used in road, square, garden, dock, airport, railway, and

other city construction projects.

Our company is a professional manufacturer in the field of steel grating,stair treads,trench

cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating

has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle

East,etc.We always stick to manufacturing good quality products for our valuable customers

worldwide.For sure,anping tiantai is your right partner for purchasing & developing

quality goods in China.

1) Bearing Bar (Load Bar) Specifications (mm):

The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The

specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7

x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):

12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according

to client's requirement and 30, 40, 60mm are recommended, America standard is available

<1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so

on. >

3) Material:

Mild Steel (Low Carbon Steel) or Stainless Steel

4) Surface Treatment:

Untreated, Painting or Hot dip galvanizing

5) Steel grating standards:

A) China: YB/T4001-1998

B) USA: ANSI/NAAMM (MBG531-88)

C) UK: BS4592-1987

D) Australia: AS1657-1985

E) Japan: JJS

Serrated Welded Steel Bar Grating Specification:

All the specification only part of the common specifications,the bearing bar/bearing bar space,

and the cross bar space,all can change;our workshop can product the grating as the customer requirement,

the stainless steel grating size and the cross bar change,also the space ,all can change it,if you have any

requirement let me know

Serrated Welded Steel Bar Grating Installation:

Regarding welding installation, angle welding would used at the first bearing bar of every corner,which the

welding length is no less than 20mm,&the height is no less than 3mm.

Welding & using saddle clips are two ways for installation of grating. The welding is suitable for those

places where there is no need to move or dismantle,for instance,the flooring around the machines.

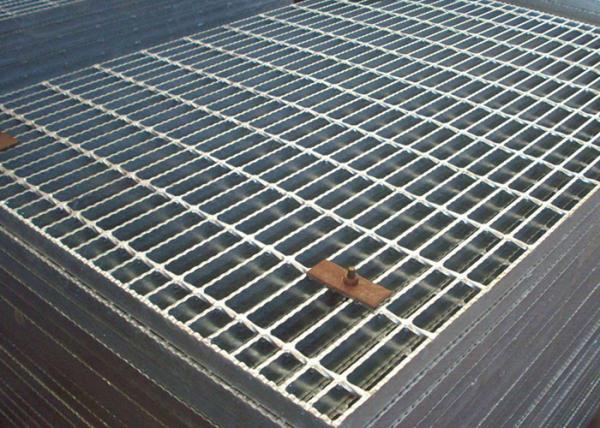

Serrated Welded Steel Bar Grating Picture:
