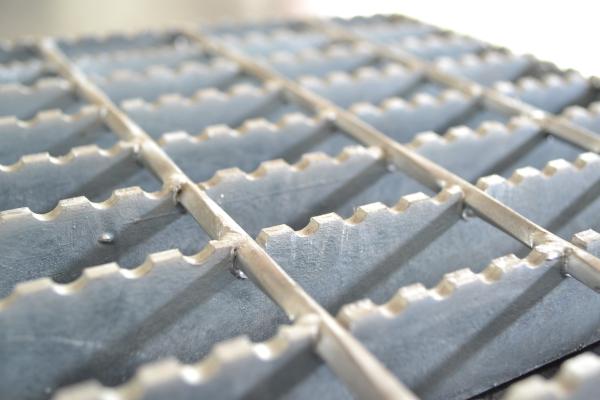

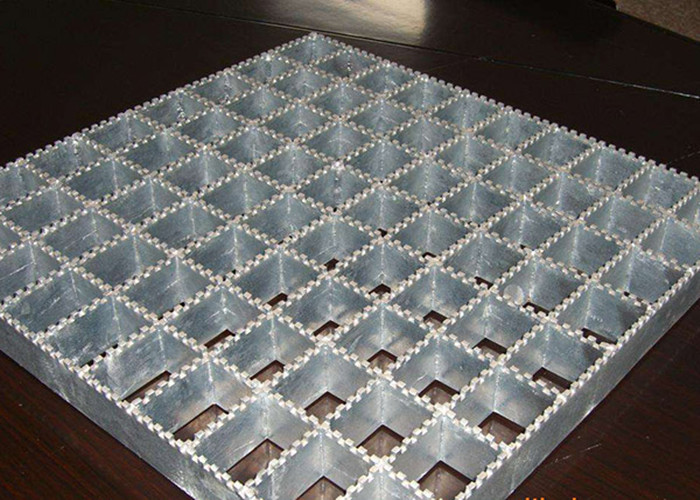

    Serrated Galvanized Steel Grating 1000*6000mm Painted Surface Treatment

    Ask Lasest Price
    Brand Name : TT
    Model Number : TT-3
    Certification : ISO9001-2015
    Payment Terms : L/C T/T
    Supply Ability : 1000PIECES
    Delivery Time : 2-6 DAYS
    Price : Negotiable
    • Product Details
    • Company Profile

    Serrated Galvanized Steel Grating 1000*6000mm Painted Surface Treatment

    1000 * 6000 mm Serrated Bar Grating For Structure Platform From China


    Welcome to Anping Tiantai Metal Product Co, . Ltd., where we manufacture strong, safe, no-maintenance steel grating and accessories for a wide range of industrial uses.
    We can manufacture serrated Bar grating to any length and width to meet your specifications.

    Advantages:
    Steel grating offers the following advantages compared with steel grid sheets:
    Steel grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to installation and durable for uses.

    Specific application:
    Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:

    Packing and loading of serrated bar grating
    Normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.
    there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.
    It is suitable for loading and unloading by fork-lift and crane.


    No.ItemDetailed Description
    1Bearing Bar25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
    US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
    2Bearing Pitch12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
    US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
    3Cross Bar Pitch38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
    4Steel GradeASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
    5Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating
    6Grating StylePlain / Smooth, Serrated /teeth, I bar, serrated I bar
    7Grating StandardChina: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
    UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
