Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification

Hebei Zhuote wire mesh products Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification from wholesalers

    Buy cheap Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification from wholesalers
    • Buy cheap Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification from wholesalers
    • Buy cheap Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification from wholesalers

    Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification

    Ask Lasest Price
    Brand Name : TT
    Model Number : TT-3
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000m2+per+day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification


    Galvanized Serrated Grating For Floor Forge Walkway Steel Grating


    Product name:Galvanized Serrated Grating


    Galvanized Serrated Grating Factory

    1.Are you factory or Middleman?


    We are professional manufacturer in steel grating since 1990, our factory is 3000 square


    meters located in hebei,China.

    2.How long can be your products survived?


    The products of our factory can be used at least 10 years as standard;But we also according the demand


    of clients,will produce products for 20 years long life; such as Steel Grating,Steel Stair Treads,Ditch


    Cover,Industrial platform

    3.Do your factory provide warehousing services?


    There is a place of our factory, which is specially used to store goods, after finished of goods.The customers


    can storage for free.

    4.What is the payment terms?


    Our factory payment term : T/T by 30% as deposit, 70% as balance before leaving factory. We will provide


    high quality products and services to customers around the world.Looking forward to cooperating with you.


    Welcome to have a visit to us at any time.


    Galvanized Serrated Grating Detail:


    We can manufacture serrated steel grating to any length and width to meet your specifications.


    1)Bearing bar pitches may be 15 to 30, 40, 60, 80 and 90mm; Of which 30and 40mm are recommended


    2) Cross bar pitch may be 30, 38, 50, 76 and 100mm; Of which 50 and 100mm are recommended


    3)Bearing bar length:800mm-6000mm,6000mm is recommended


    4)Cross bar length:200-1050mm,1000mm is recommended


    Finished


    1. Hot-DIP galvanizing. It is the process of coating iron or steel with a thin zinc layer by passing the steel


    through a molten bath of zinc at a temperature of around 860 F (460 C). When exposed to the atmosphere,


    pure zinc reacts with oxygen to form zinc oxide, which further reacts with carbonate, adult grey, fairly strong


    material that stops further corrosion in many circumstances, protecting the steel below from the elements.


    Galvanized steel is widely used in applications where rust resistance is needed.


    2. Painting


    3. Untreated.


    Steel Grating Standards:


    A) China: YB/T4001-1998


    B) USA: ANSI/NAAMM (MBG531-88), AISI, ASTM


    C) UK: BS4592-1987


    D) Germany: DIN


    E) Australia: AS1657-1988


    F) Japan: JIS


    Steel Product Standard:


    China GB/T 700-1988


    Hot Galvanizing Standard


    China GB/T 13912-2002


    Galvanized Serrated Grating Specification:


    TypeSpecificationCross Bar WidthBearing Bar LengthTwo Side OpenBearing Bar Type
    TMSSG001G325/30/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG002G325/40/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG003G305/30/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG004G305/40/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG005G253/30/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG006G253/40/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG007G404/30/1001000mm6000mm/3000mmOpen typeSerrated type
    TMSSG008G404/30/1001000mm6000mm/3000mmOpen typeSerrated type

    All the Galvanized Serrated Bar Grating specification only part of the common specifications,the bearing


    bar/bearing bar space,and the cross bar space,all can change; our workshop can product the grating as the


    customer requirement,the Galvanized Serrated Bar Grating size and the cross bar change,also the space


    ,all can change it,if you have any requirement let me know


    Galvanized Serrated Grating Useful


    Power plantsSewage treatmentThe ship manufacturingMunicipal engineeringNuclear power plants
    shipyardOffshore platformIndustrial platformHigh towerWater supply and drainage
    smeltersPharmaceutical manufacturingPainting workshopStereoscopic parkingCement plant
    chemical plantSafety protectionFood processingStorage shelvesLight industry

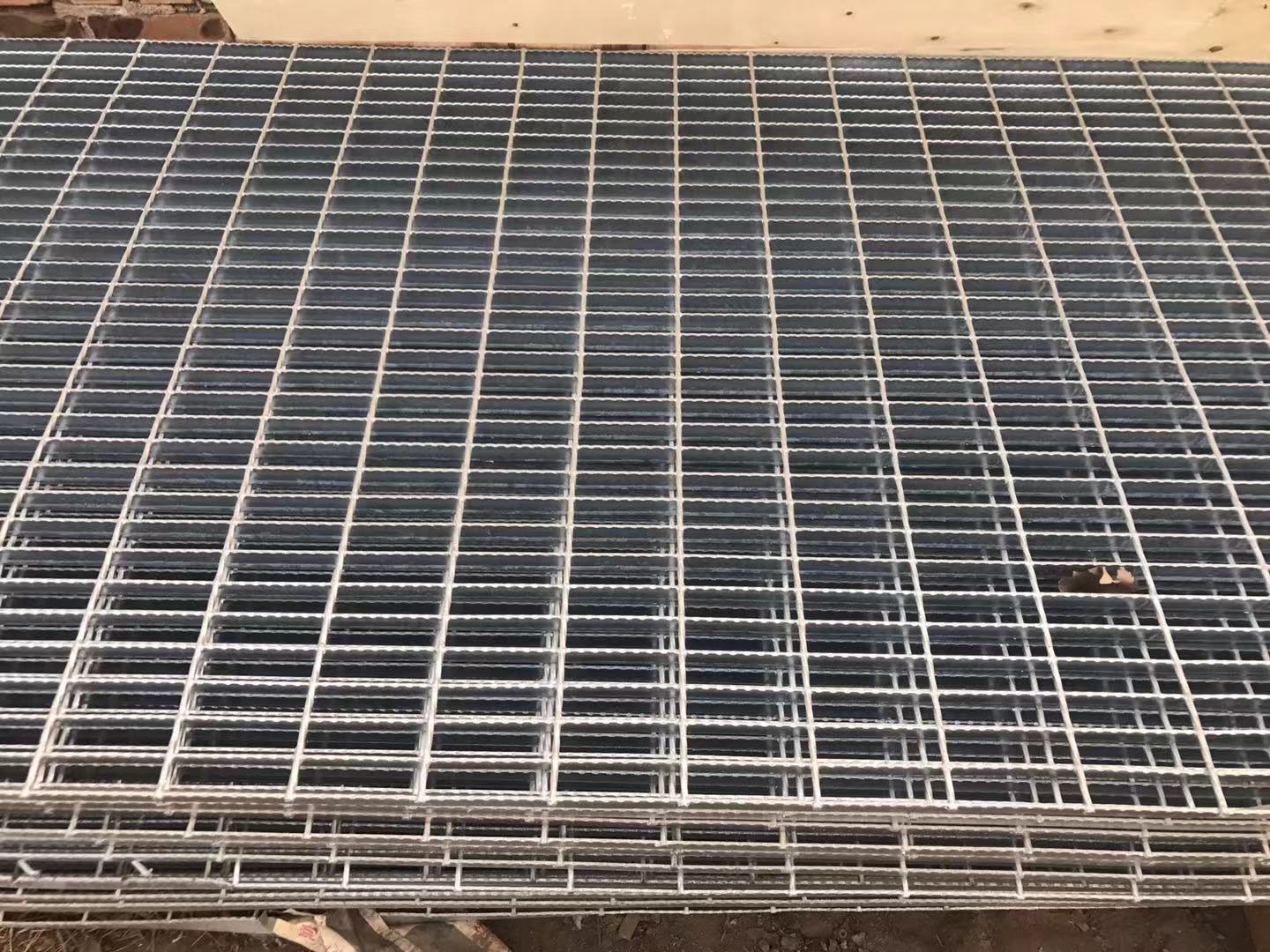

    Galvanized Serrated Grating Picture:



    Quality Floor Forge Walkway Steel Grating Serrated Bearing Bar ISO9001 Certification for sale
