ISO 9001:2015 Galvanized Swage Locked Grating Used For Indoor Floor
Product Name:Galvanized Swage Locked Grating
Galvanized Swage Locked Grating Detail:
Bearing bar types:Serrated type,Plain type,I type
Bearing bar space:30mm/40mm/50mm
Cross bearing bar space:30mm/40mm/50mm/100mm
Type Size:600mm*800mm/700mm*800mm/800mm*1000mm
Surface treatment:hot dip galvanized /painting /untreatment
Galvanized Swage Locked Grating Standard:
| Steel Grating Standard |
| Steel Grating Standard | Steel Standard | Galvanizing Standard |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
The grating is widely used for floor, catwalk, Mezzanines/decking,
stair tread, fencing; vault bin floor floor,
ramp, dock/warehouse, all kinds of trench cover, window and
machinery safe guards, wash rack, ventilation
screen, storage rack, suspended ceiling, drainage pit cover and
etc.
Galvanized Swage Locked Grating Specification:
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Galvanized Swage Locked Grating Useful
Widely used in petroleum chemical industry, power plant, water and
sewage treatment
plants, municipal engineering, environmental sanitation engineering
fields of the platform,
footpath,ditch lid, manhole cover, ladders, fences, guardrail etc.
1. Material: Carbon steel or stainless steel
2. Surface Treatment: Hot-dip galvanized,plain type and so on.
3. Size: Standard or non-standard, making as the customers
drawings.
4. Packing: Naked or packing as the customers request.

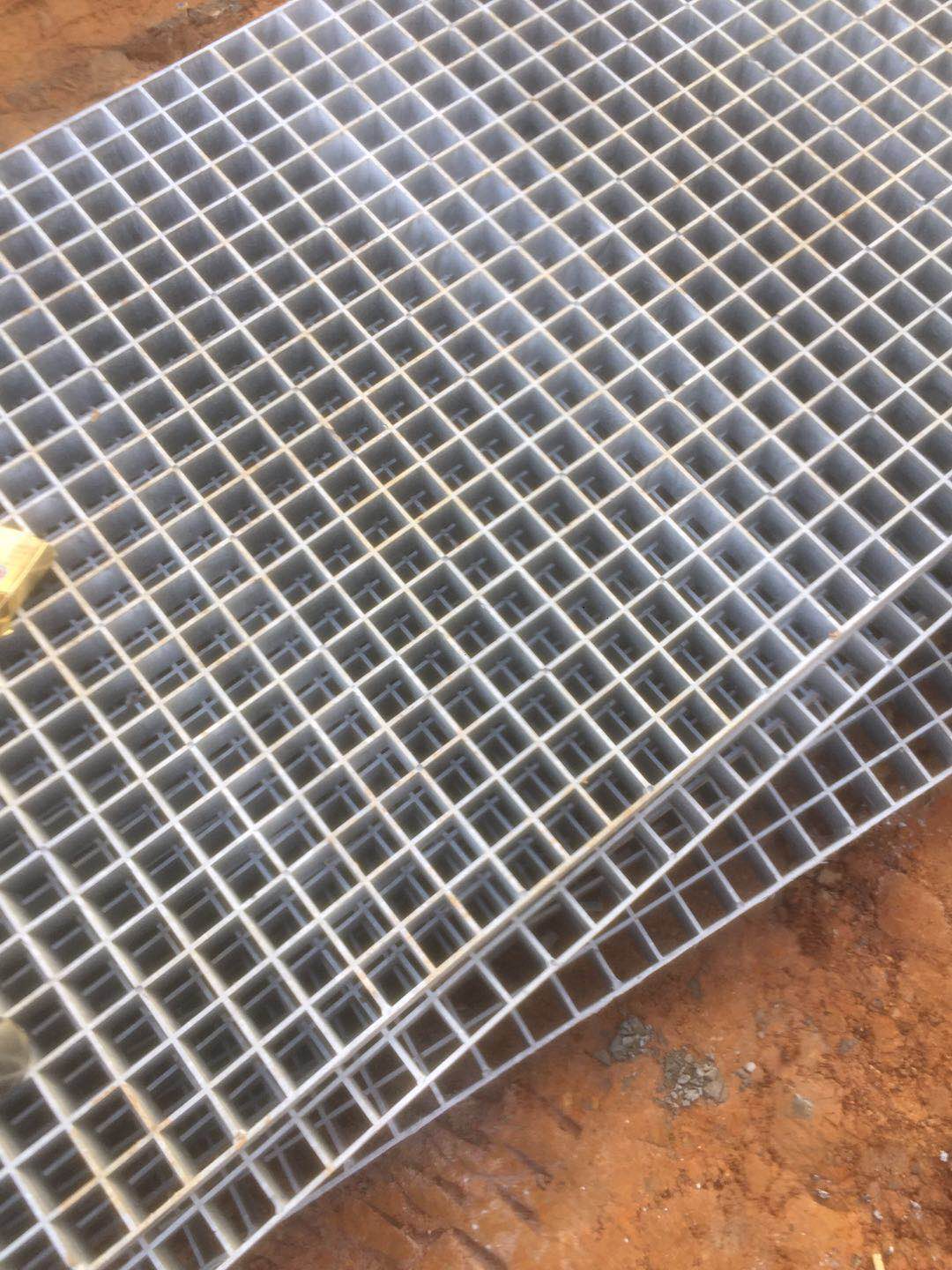

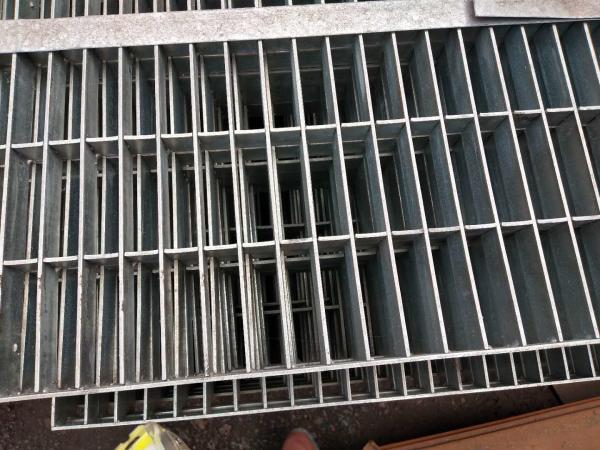

Galvanized Swage Locked Grating Picture:
