Brand Name : | TT |
Model Number : | TT-1 |
Certification : | ISO 9000-2015 |
Payment Terms : | L/C T/T |
Supply Ability : | 100 TONS/DAY |
Delivery Time : | 3-10 work days |
Price : | Negotiable |
Galvanized Industrial Steel Grating , Stainless Steel Walkway Grating
Description:
We are a leading professional manufacturer of high quality Walkway Bar Grating for construction projects with a much competitive price, located in
HeBei of China. Anping Tiantai Metal Products Co., Ltd has approved
ISO9000-2015 Quality Management System. 70% of our products is
regularly exported to the worldwide every year. There are many
regular grating customers in Ohio, Houston, Charlotte of USA,
Middle East(Kuwait, UAE, Saudi A), AUS, South America, Europe and
Southeast so on.
Plain Steel Grating, Serrated Steel Grating and I Bar Steel Grating
are usual material of Walkway Bar Grating. Our gratings are widely used in steel structure platforms, stair
treads, sidewalks, drainages and well covers etc. We can design and
manufacture standard steel grating and in customized shapes per
client's requirements.
Quality Standards:
No. | Item | Detailed Description |
1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

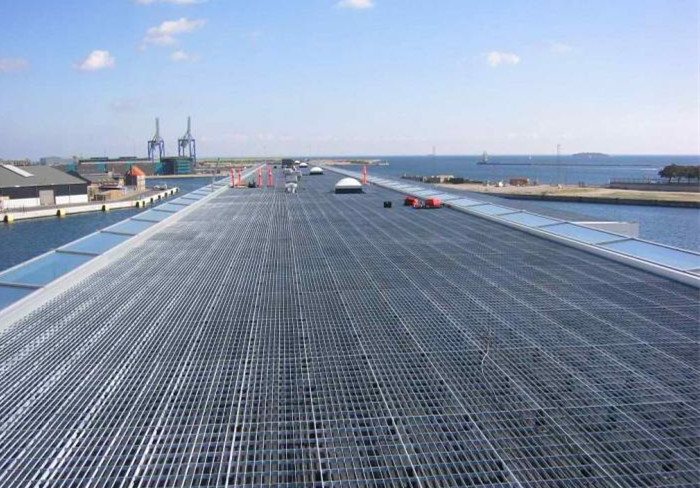

Product Picture:
![]() |
