Hot Sale Hexagonal Pattern Steel Expanded Metal Mesh Sheet with Low
Price
Expanded Metal Mesh Description:
Material: Aluminium plate, thin low carbon steel plate(black
plate,electric galvanized plate, hot-dipped galvanized plate),
stainless steel plate, Al-Mg alloy plate, copper plate and nickel
plate,etc.
Processing: Made by expanding. In the shapes of diamond, square,
round, triangle and scale-like opening.
Features: Economic, enduring, graceful.
Uses: Be broadly used in the areas such as highway, railway,
residence, irrigation works and the
Protection partition of machines, electrical appliances, windows
and aquiculture.
Size: Long way of mesh: 12.5-200mm,
Short way of mesh: 5-80mm,
Thickness: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from
600-2000mm.
The leading manufacturer of expanded metal lath and accessories in
China.
Regular Expanded Metal Lath is a multi-purpose plaster base and
reinforcement, which has been used successfully for over 100 years.
Expanded Metal Lath is an outstanding plaster base used for walls,
ceilings and ceramic tile. The flat surface is easily cut and can
be formed to fit curved surface.
Expanded Metal Mesh Usage:
Expanded Steel/Aluminium Sheet can be used as steel reinforcement
materials in petroleum, chemical industry and building decorations,
fencing for road, railway, civil building, water conservancy's
construction; protecting of all kinds of machines, electrical
equipment, window and aquatic product's breeding etc.
Expanded Metal Mesh Material And Specifications
Expanded metal mesh can be made from a wide range ofmaterials,
chiefly expanded steel mesh,
aluminum expanded metal mesh, expanded stainless steel, expanded
nickel and other metal.
| Specification of Expanded Metal Mesh |
| Sheet Thickness | | | Stem | | | |
| Opening in Width | Opening in Length | Roll Width | Roll Length | Weight |
| mm | mm | mm | mm | kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Expanded Metal Mesh Features:
Thickness available from 0.5mm to 8mm.
Expanded Metal Mesh Weaving method:
stamping

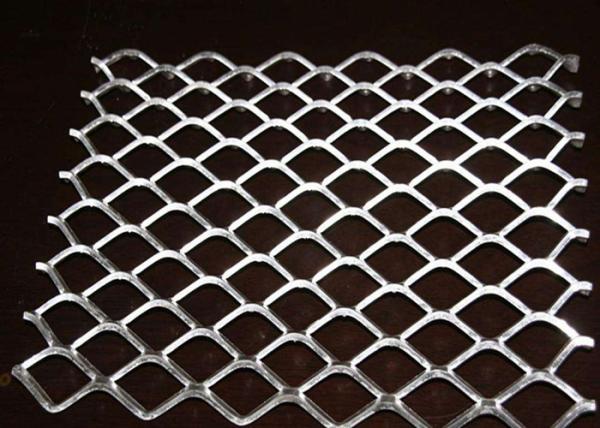

Expanded Metal Mesh Sheet Picture:
