Composite Glass Reinforced Plastic Grating For Fiberglass Catwalk
Grating
Product Name:Composite Glass Reinforced Plastic Grating
Composite Glass Reinforced Plastic Grating Specification:
| Item | Thickness (mm) | Mesh(mm) | Max. Panel Size(mm) | Weight(kg/m2) |
| 1 | 13 | 50X50 | 1220X3660 | 5.5 |
| 2 | 13 | 50X50(DM) | 1220X3660 | 7.46 |
| 3 | 13 | 38X38 | 1220X3660 | 6 |
| 4 | 14 | 40X40(20X20) | 1247X4047 | 9.3 |
| 5 | 22 | 40X40(20X20) | 1527X4047 | 16 |
| 6 | 22 | 40X40(8X8) | 1527X4047 | 16.5 |
| 7 | 25 | 38X38 | 1220X3660 | 12.6 |
| 8 | 25 | 25X100 | 1220X3660 | 13.05 |
| 9 | 25 | 25X100(HD) | 1220X3660 | 15.67 |
| 10 | 25 | 38X38(DM) | 1220X3660 | 14.38 |
| 11 | 30 | 38X38 | 1220X3660 | 15.9 |
| 12 | 30 | 52X52(25X25) | 1000X4049 | 16.42 |
| 13 | 30 | 40X40(20X20) | 1527X4047 | 18.78 |
| 14 | 30 | 40X40(8X8) | 1527X4047 | 19.58 |
| 15 | 38 | 38X101.6 | 1220x3660 | 11.65 |
| 16 | 38 | 38X152 | 1220x3660 | 15.13 |
| 17 | 38 | 38X38 | 1525X3966 | 19.5 |
| 18 | 38 | 25X101.6 | 1220X3745 | 21.7 |
| 19 | 38 | 25X152 | 1220X3660 | 22 |
| 20 | 38 | 40X40(20X20) | 1527X4047 | 24.6 |
| 21 | 38 | 38X38(19X19) | 1220X3660 | 25.5 |
| 22 | 40 | 40X40 | 1527X4047 | 21.43 |
| 23 | 50 | 50X50 | 1525X4000 | 23.43 |
| 24 | 50 | 25X50(HD) | 1220X1830 | 47 |
| 25 | 38 | 38X152 | 571.5X3660(Stair treads) | 17.23 |
| 26 | 20 | 38X38 | 1220X4000 | 9.8 |
| 27 | 25 | 40X40 | 1247X4047 | 12.3 |
| 28 | 25 | 50X50 | 1220X4000 | 11.5 |
| 29 | 30 | 40X40 | 1247X4047 | 14.6 |
| 30 | 38 | 25X152 | 565X3050(Stair treads) | 23.1 |
| 31 | 40 | 40X40(20X20) | 1247X4047 | 23.7 |
| 32 | 40 | 50X50 | 1220X4000 | 15.82 |
| 33 | 60 | 38X38 | 1220X4000 | 50.4 |
All the specification only part of the common specifications,the
bearing bar/bearing bar space,and the cross
bar space,all can change;our workshop can product the grating as
the customer requirement,the stainless
steel grating size and the cross bar change,also the space ,all can
change it,if you have any requirement let
me know
Composite Glass Reinforced Plastic Grating Detail:
Molded Fiberglass Grating is available in a variety of resins,
standard and custom colors depths, panel
sizes and mesh configurations. Surface options include a meniscus
or integrally applied git top, both of
which offer superior, slip resistant footing. FRP molded grating is
used in place of traditional materials for a
FRP solutionthat fits a wide range of applications and
environments.
Composite Glass Reinforced Plastic Grating Advantqages:
1. Safer Surface
Traction and safety are enhanced by course epoxy coating bonded to
walking surfaces.
2. Better Support & Stability
Heavier loads are supported and stabilized because center core
wedge and spacer bars provide a
mechanical lock at each bearing bar.
3. Unidirectional Strength
Cross rods and bearing bars lock mechanically for maximum strength.
4. Easy Fabrication
Standard hand tools are used to cut and fabricate.
5. Low Maintenance
Angled design offers easier cleaning, as dirt, cleaning fluids and
rainwater simply wash away.
6. Extended Life
Protective coated resin surface increases resistance to chemical
corrosion and continuous ultraviolet
exposure
7. Durability
Continuous polymer fibers increase transverse strength and
resistance to impact.
8. Stress Resistance
Continuous polymer rovings resist tension, compression and bending
while providing longitudinal strength.
Composite Glass Reinforced Plastic Grating Surfaces
·Meniscus(Concave)
·Smooth
·Embedded Grit
·Post-cure Grit
·Mini mesh
·Micro mesh
·Mirror surface
·Chequered plate
·Gritted solid top
Composite Glass Reinforced Plastic Grating Applications
·Trench cover
·Double deck floor
·Plank road
·Operation platform
·Platform around tank
·Offshore oil platforms
·Sewage treatment
·Boats and others
Composite Glass Reinforced Plastic Grating Any Question
1. Q: Are you Trading Company or Factory:
A:. We are Trading Company and also Factory
2.Q: What's your production ability for one month?
A:We can product Metric Tons per Month 200000 pcs .
3.Q: What's your MOQ?
A:50pcs
4.Q:What's your shipping port?
A:Tianjin,shanghai or any port as your requirement
5.Q: What's your Payment Terms?
A:L/C,T/T,Western Union

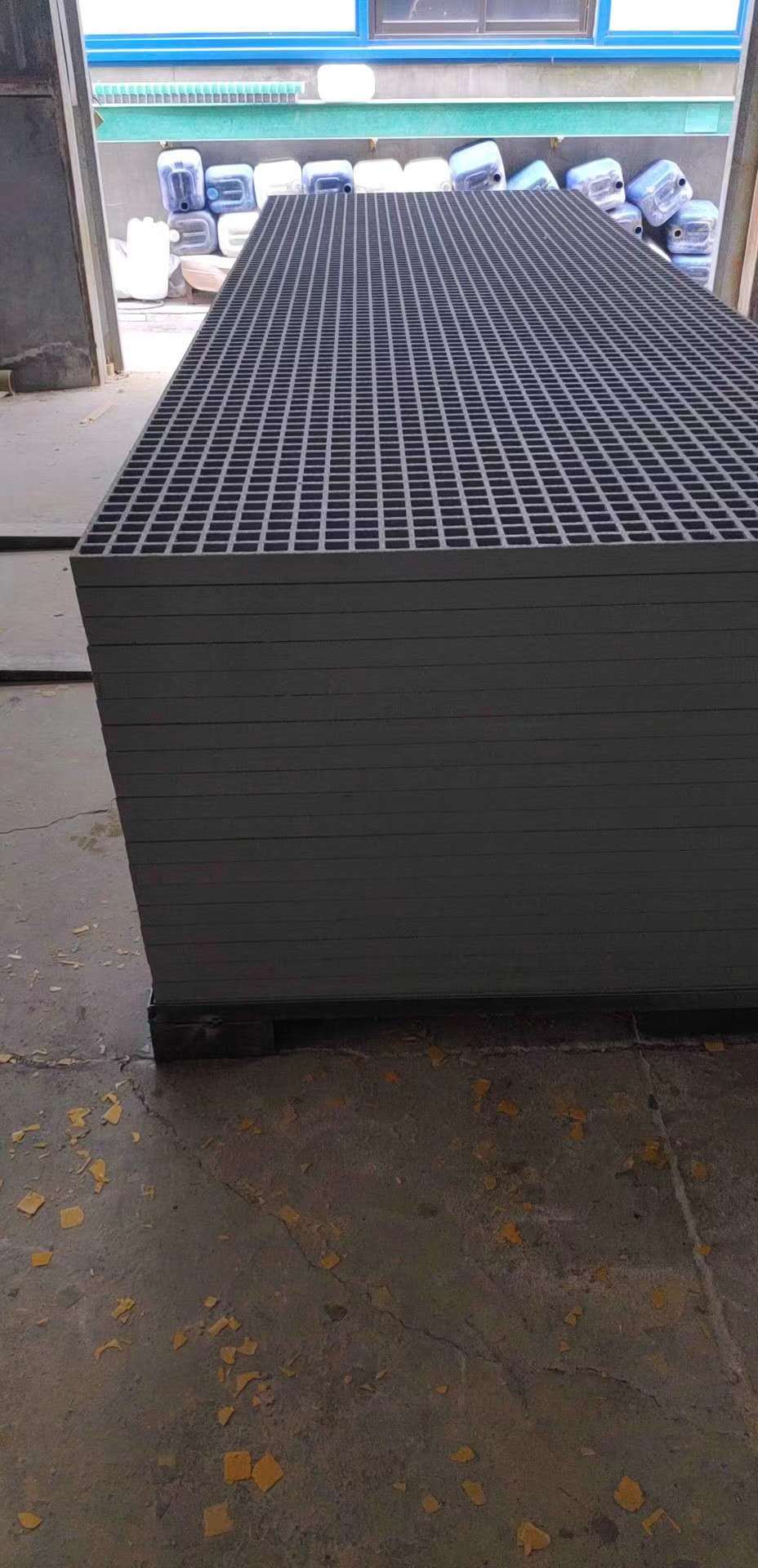

Composite Glass Reinforced Plastic Grating Picture:
