Galvanized Steel Grating Clips Used For Floor Grating Clips

Product Name:High Quality Grating Clips Galvanized Steel Grating Clamps Type A B C M

Galvanized Steel Grating Clips Specification:

Grating Clips

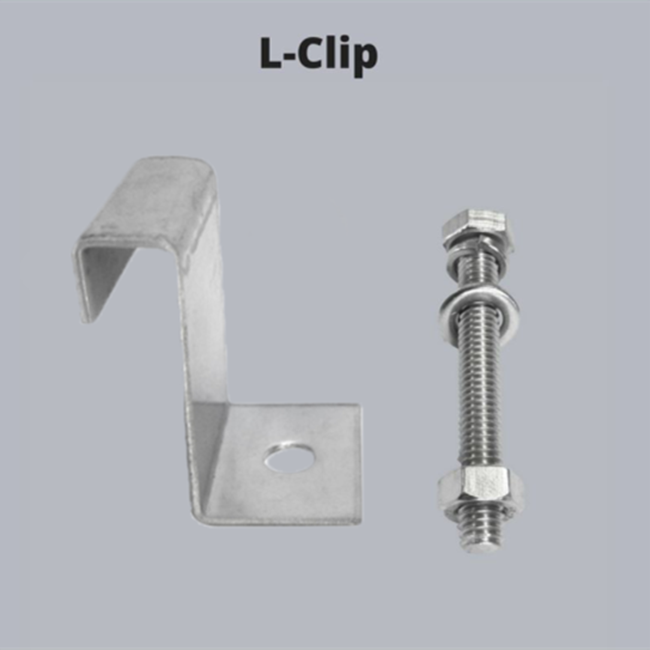

Metalpower has more than 300 molds which means that we can produce at least 300 kinds of grating clips such as C, G, J, L, M, round clips and so on.

In addition, customized clips can be also yielded by Metalpower.

Materials for our products are high-quality stainless steel including 304SS and 316SS.

In addition, surface treatment can be galvanizing and H.D. galvanizing.

Our clips provide excellent holding capability for most molds and pultruded fiberglass gratings.

Installation: Insert the M clip in the open mesh FRP grating such that, it sits appropriately on the load bars & the base of the saddle clip is held close to the bottom of the FRP grating panel. For fixing M clip directly into the existing base structure, pilot drill through the hole in the clip and into the substrate then fasten using suitable screw & plug. And, for fixing M clip into a support frame, you will need to drill into the frame, insert the bolt and then tighten the nut & washer underneath the frame.

Specifications:

Material: carbon steel or stainless steel.

Surface treatment: galvanized.

Features:

Steel grating accessories are used to install and fix steel grating.

High strength and resistance to stress.

Corrosion proof.

Do not damage the galvanized layer.

It can be demolished at any time, reused.

Easy to install.

Features and Benefits

For grating with bearing bars at 15/16" (0.937) & 1-3/16" (1.188) centers

Use galvanized steel or zinc-plated clips for applications on Aluminum grating

Bolt Holes may distort through forming, but 0.281" diameter pin will pass through 0.312" hole, & 0.328" pin will pass through 0.343" hole

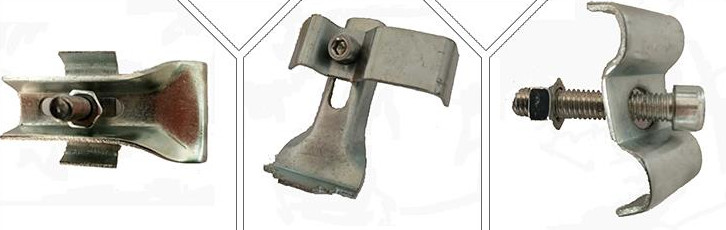

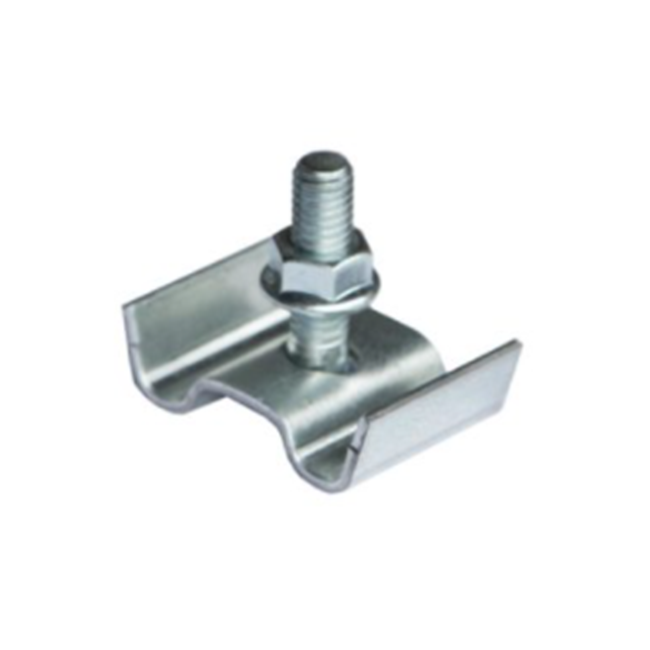

Galvanized Steel Grating Clips Picture:

FAQ

1.What is the procedure? Design drawing - quotation - confirm contract - pay deposit - confirm drawing - Produce - loading container and ship Installation.

2.What's the advantage of steel structure building? Low cost,fast produce and installation,recyclables.

3.Why choose SuperM Steel? We have professional design team,workers and installation team for more than 10 years experiences.We have exported steel structure

building more than 20 countries,we have good reputation all over the world.Also the quotation of SuperM is very competitive compare with the same industry.

4.What is SuperM production capacity? More than 10,000 tons per year.

5.Can you do turnkey project? Yes,Qingdao SuperM Steel has their own design,produce and installation team.

  Hebei Zhuote wire mesh products Co., LTD

We are Hebei Zhuote wire mesh Products Co., LTD., our company is located in the intersection of Beijing, Tianjin, Shijiazhuang three cities - the famous "China wire mesh town"

Peace. The company covers an area of 30000㎡, has more than 100 employees.

 As a modern enterprise, specializing in the production of steel grid plate,Grid plate, step plate, platform plate, punching plate series, guardrail net and other products.

The company is equipped with four automatic large-scale pressure welding production lines, welding technology is exquisite, beautiful, solid, smooth and burr free. In recent years, the company's sales increased steadily, last year's domestic trade sales of 75 million dollars, export sales reached 45 million dollars, domestic product sales involved in chemical energy, power plant substation, sewage treatment plant, new energy engineering, logistics transfer station, municipal engineering, for the domestic construction of a force. At the same time, the products are exported to Southeast Asia, Europe, the Middle East, Africa and other regions, and also create considerable foreign exchange income for the local.
