Brand Name : | TT |
Model Number : | 01 |
Certification : | ISO9001,CE |
Price : | 15.27-23.6usd/pc |
Payment Terms : | L/C, T/T, MoneyGram |
Supply Ability : | 25000piece per month |
Delivery Time : | 5-8days |

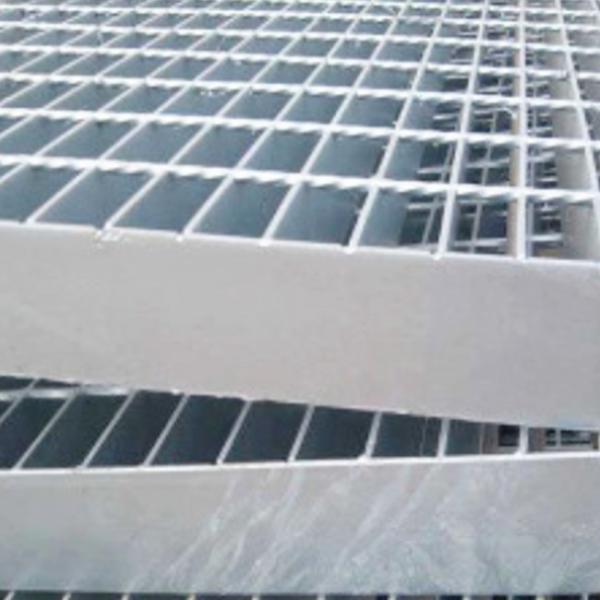

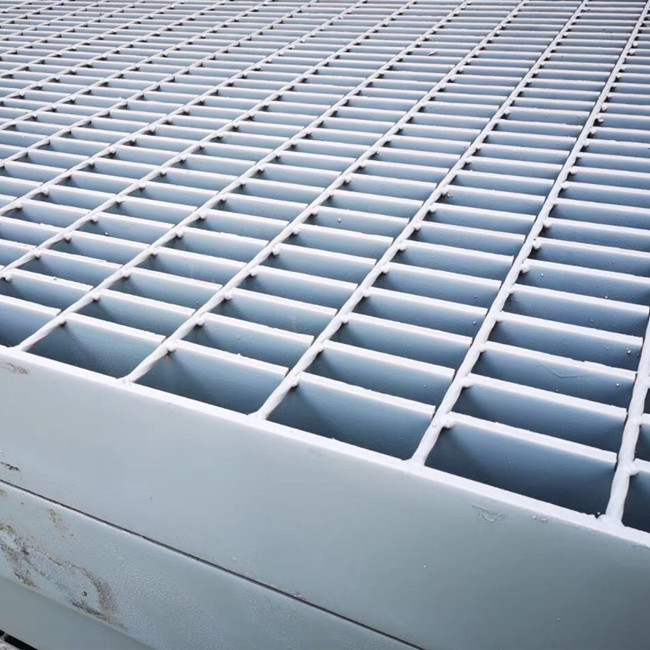

Heavy duty grating is one of our steel grating,also know as press weld steel grating.Due to the extremely strong and durable for all the bearing application,which become the most important grating in the markets.The best bearing capacity makes them have a much higher performance in the decking and floor application.
Heavy duty grating is available in a variety of bearing bar
spacing,thicknesses and depth according to the applications and
loading requirements.
They are also available in either smooth top or serrated for
anti-slip
Installation of Heavy Duty Bar Grating Floors:
The installation of steel grating welding and installation folder
can be used two ways; welding fixed for the permanent position does
not require demolition, such as equipment around the platform; and
with the use of the installation folder does not undermine the zinc
layer and the demolition of the characteristics of convenience.
Welding is fixed: usually at a flat 2 flat steel welding, weld
length of not less than 20mm, not less than the high welding 3mm,
the use of plane angle weld; if the grating or the span of
particularly large particularly when the load above the need to
strengthen the Korean joints.
Installation folder for a variety of grating specifications, see
the following description on the installation folder.
Regarding saddle clip installation, at least four sets of saddle clips would be used in one pc grating. It would be better using more in the saddle for these bar grating with a bigger span.
Heavy Duty Floor Grating Materials:
Mild carbon steel provides an economical, high strength for uses in
most industrial and commercial applications.
Heavy Duty Floor Grating Advantages:
Heavy Duty Trench Grates offers the following advantages compared
with steel grid sheets:
Heavy Duty Trench Grates has light weight, good strength, large
carrying capacity and can save materials and cost. It offers good
ventilation of light and wind, a modern sense, aesthetic appearance
and anti-skid safety. It is also easy to clean, easy to
installation and durable for uses.
Type | Hot Dip Galvanized Steel Bar Grating 6mm 8mm 10mm Heavy Duty Steel Grating For Trailer Floor |
Color | sliver |
Material | Stainless Steel |
Surface treatment | Hot Dipped Galvanized |
Size | Customized |

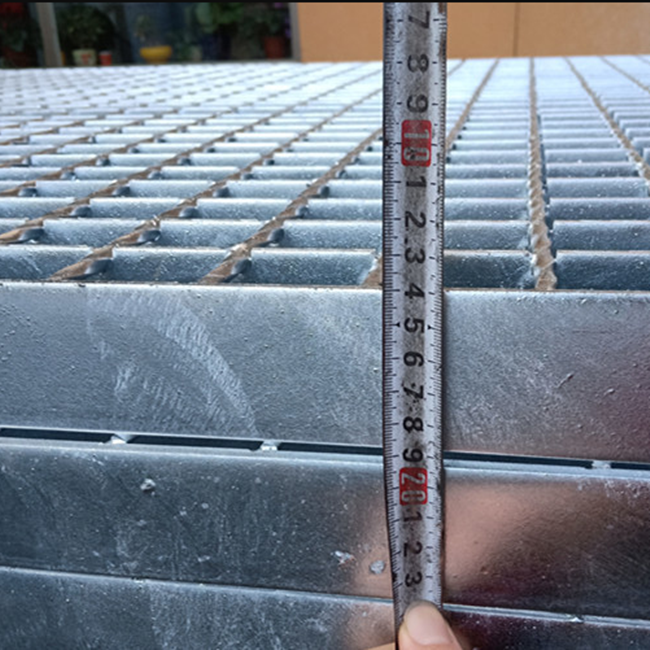

Bearing bar thickness | 3mm-10mm |
Bearing bar width | 30mm-100mm |
Feature | Easily assembled,durable |
Company Certificate
Steel grating advantage
1.No corrosion traps around joints
2.High strength to weight ratio
3.Allows shaping without loss of strength
4.Available plain or serrated
5.Allows passage of heat, light, water and ice.
FAQ
Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our
price will be cheaper in the
same quality.
2) Customize: We can make the product as your request,
specification,size and quality can meet
your request.
3) Quality assurance:We have professional quality testing team.They
will test the products before shipment.
4) After-sales service:Any question is welcome.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material,
what cheaper parts instead, etc, we will do that as your request
and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products
specification,quantity and other requirements. We will make the
most competitive quotation to you as soon as possible.
![]() |
