Product introduction

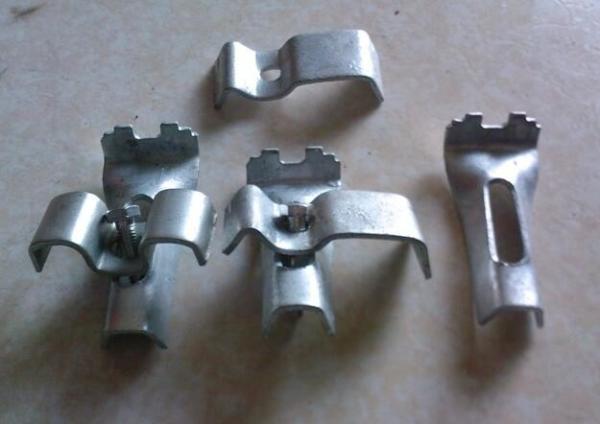

The installation clip of steel grid plate is made of high quality
steel plate after the machine is bent and punched, the installation
clip is firm and durable, easy to install, the installation clip
after galvanizing is beautiful and firm, and not easy to rust,
which can fix the steel grid plate well.
Technical Data
Galavnized Clip
| Cross Bar Pitch | Bearing Bar Pitch | Bearing Bar Specification Width Thickness |
| 20x3 | 25x3 | 32x3 | 40x3 | 20x5 | 25x5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| Cross Bar Pitch | Bearing Bar Pitch | Bearing Bar Specification Width Thickness |
| 30 | 100 | G325/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G325/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G325/40/100 | G235/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G325/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
Type classification

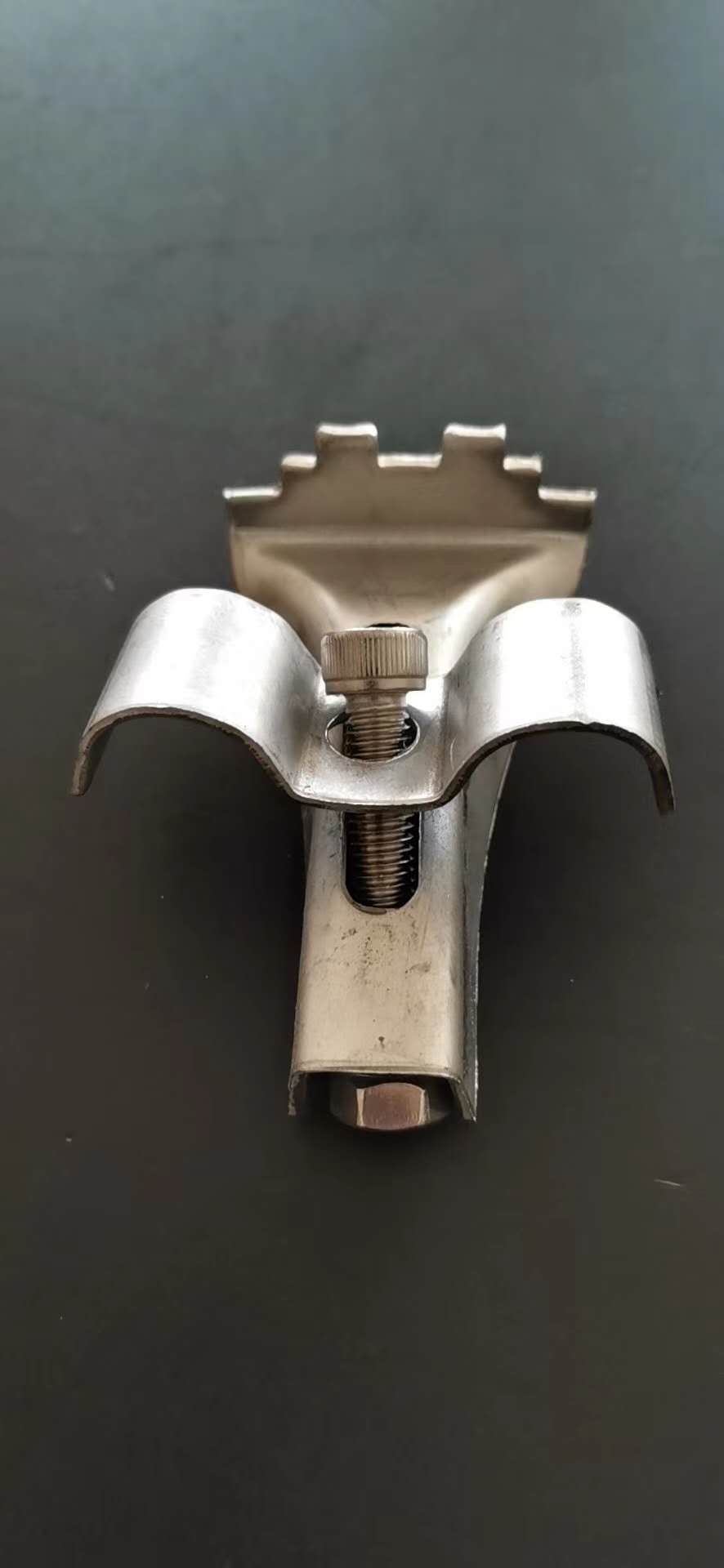

Type A: It consists of an upper press plate with double hooks, A
lower press plate with teeth and an M8 inner hexagon bolt.
Type B: consists of an upper pressure plate with two hooks (one
hook can enclose two adjacent steel lattices), a lower pressure
plate with teeth and a & GT;Composition of M8 inner Angle bolts.
Type C: consists of an upper pressure plate with a double hook and
an M8 hex head bolt that can be welded to the support member.
Nstallation method
1. Directly weld the steel grid plate or step plate on the
supporting steel structure, and brush the welding place with zinc
silver powder paint twice.
2, the use of the Yangtze River Delta steel grid special
installation clip installation, do not destroy the galvanized
layer, easy to disassemble.Each set of mounting clamps includes an
upper clamp, a lower clamp, an M8 round head bolt and a nut.
3. Stainless steel mounting clip or bolt connection and other
fastening methods can be provided as required.
4, the steel grid installation clearance is generally 10MM.
5, the installation must pay attention to the installation is firm
and reliable, should often check, prevent the installation clip
loose fall off, close to the vibration source of the steel grid
plate welding or add rubber pad.
