Metal Material Anodization Swage Aluminum Walkway Floor Bar Graitng
Product Description
Aluminum grating is manufactured from ASTM B221, 6063, or 6061
alloy, aluminum grating is available in four distinct products:
type "SG" Swaged Rectangular Bar, type "SGI" Swaged "I"-bar, type
"SGF" Swaged Flush-Top, and type "ADT" Dovetail Pressure Locked.
All four products are available with bearing bar spacing ranging
from 19/16" (1-3/16") to 7/16" on center and with cross bars at
either 4" or 2" on center.
Aluminum grating are typically shipped "mill finish" with no
additional treatment. For architectural applications or highly
corrosive environments, supplemental anodizing, chemical cleaning,
or powder coat finishes are available.
Product Show
SG aluminum grating is made of aluminum plates and cross bars. It
is manufactured by inserting cross bars into pre-punched holes in
the bearing bar. The cross bars are then swaged forming a positive
mechanical connection. Bearing bars are available with standard
plain or optional serrated or Algrip surfaces. The cross bars are
fully locked within the bearing bar, slightly below the top
surface.
Product Specifications
| Product type | aluminum Grating |
| Material | aluminum |
| Size | Customer's Requst |
| Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| Crossbar pitch | 38,50,76,100,101.6mm |
| Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US
standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1
1/4"x 1/4", 1 1/2"x 1/4" etc. |

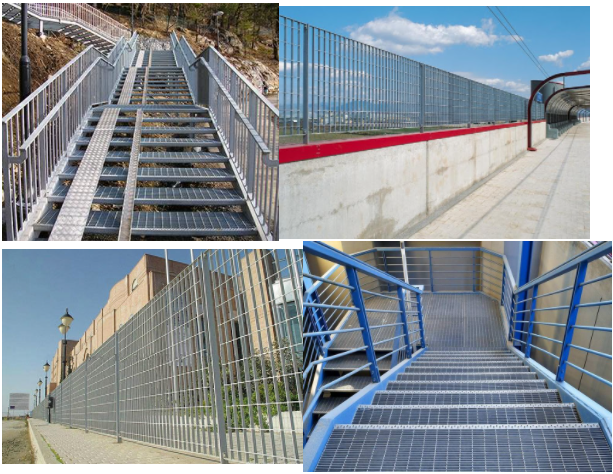

Application
Widely used as platform, walkway, park architecture, seaport
project, airport project, business building, as well as civil
building.
| 1 | Walkways |
| 2 | Stair tread |
| 3 | Drain covers |
| 4 | Industrial Platforms |
| 5 | Mezzanines |
Advantage
Products: with light weight, high intensity, no welding sparking,
excellent corrosion resistance.
It provides clean, crisp lines and the cross bar is fully locked
within the bearing bar.
Common specifications
The standard of conventional aluminum grille is 10 mm or 15 mm, and
the height is 20 mm, 40 mm, 60 mm and 80 mm. The size of aluminum
grid is 50X50mm, 75x75mm, 100x100mm, 125x125mm, 150x150mm and
200X200mm respectively The normal size of sheet grid is (mm): 10 *
10, 15 * 15, 25 * 25, 30 * 30, 40 * 40, 50 * 50, 60 * 60. The
smaller the distance, the higher the price.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service
on export process.
2.How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and
missing parts before shipping. The detailed inspection pictures of
the order will be sent to you for your confirmation before
delivery.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items.
Please feel free to feedback immediately if you are not pleased
with our quality or service.
4.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if
you have other payment,please contact me.
