hot dip galvanized steel grating 30x2mm thickness trench drain
cover grate drains
Desprictions:
As professional manufacturer of steel grating, we can producing
various of trench cover steel grating, with angle steel, with
square pipe, with checkered plate and so on.
Angle sided grate is a type of drainage trench cover with angle bar
on the two side of the grating or on the four sides of the steel
grating.
Galvanized Steel grating or bar grating is the simplest and most
economical types of types of trench covers.

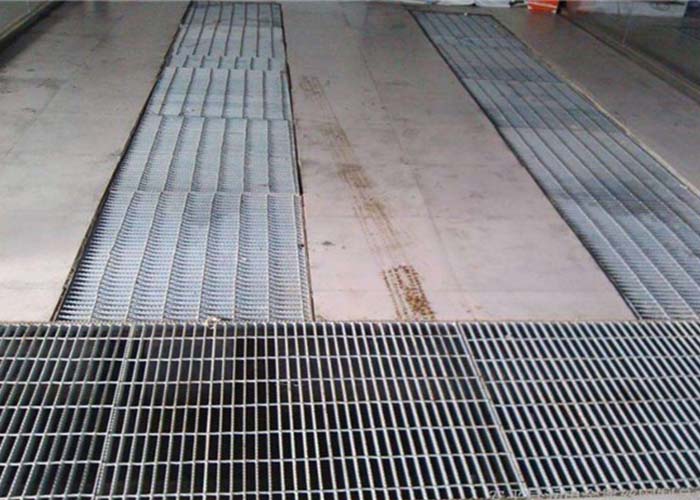

It can be installed on the trench and drainage to form a cover.
This cover can not only ensure the excellent drainage performance,
but allow the traffic passing through.
The galvanized angle frame gives the maximum opening and supplies a
strong and solid base for the grating.
It can bear the load of steel grating can improve the load carrying
capacity of grating.
| Common Specification of Steel Grating |
| Material | Low carbon, Q195, Q235 |
| Bearing bar type | Flat bar ,serrated bar ,I bar,etc |
| Bearing bar size (loading bar size) | 15,20,25,30,33,38,40,50,60,80 mm,etc |
| Cross bar pitch | 24 to 200 mm |
| Grating standard | YB/T4001.1-2007, ANSI/NAAMM(MBG531-88), BS4592-1987, AS1657-1985 |
| Feature | Fine appearance,anti-corrosive,simple installation,lightweight, high load,anti-skid,prevent dirt
deposition,ventilation,anti-explosion |
| Application | Floor walkway,industrial platform ,stair tread,metal ceiling |
| Product capacity | 5 days for 200 ton |
| Package | Pallets in containers packed by steel strap and worthy sea shipping
or according to the customers' requirements |
Feature:
1. Save material: the most material-saving way to bear the same
load condition, accordingly, the material of supporting structure
can be reduced.
2. Reduce investment: save material, save labor, save construction
time, free of cleaning and maintenance. Easy construction: fixed by
bolt clamp or welding on the pre-installed support, one person can
finish.
3. Save time: No need to re-process the product on site, very fast
installation.
4. Durable: Hot-dip galvanized anti-corrosion treatment before
delivery, strong impact and heavy pressure resistance.
