Industrial Metal Grating Floor Gully Grid Mesh Walkway Catwalk Deck
Factory Price

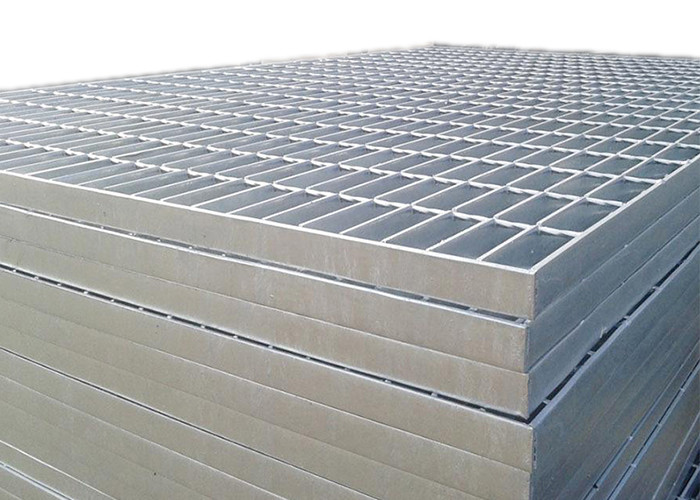

Galvanized grating, also called galvanized steel grating or
galvanized steel bar grating, refers to the steel bar grating made
of steel bar with hot dipped galvanized surface.
The carbon steel provides an economical, high strength for uses in
most industrial and commercial applications. And hot dipped
galvanized surface treatment supplies excellent corrosion
resistance performance for durability.
Steel grating is available in various material, such as stainless
steel, aluminum, and galvanized steel. Among them, the galvanized
steel grating is the most cost effective and economical type with
long service life and high load bearing stength. And it is the most
widely used in industrial, commercial and residential projects.
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3,
32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' '
, 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' '
, 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25,
60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
1.Material:
Low Carbon Steel or Stainless Steel
2.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing
3.Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS
Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20
x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x
5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80,
100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16',
1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's
requirement and 50, 100mm are
recommended, America standard is available.
Application

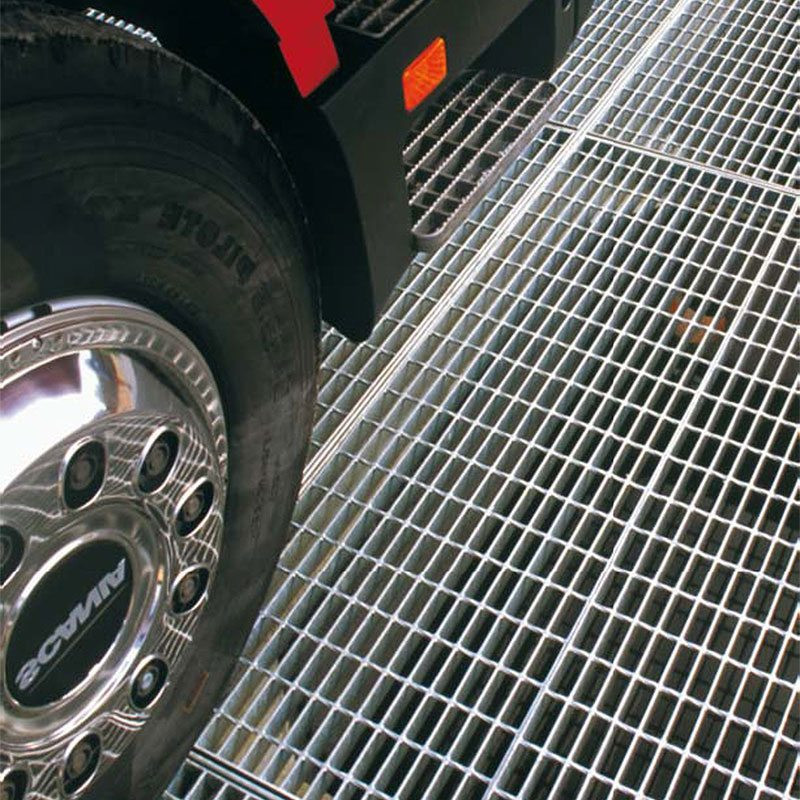

Steel grating regularly appears on catwalk, factory floor,
platform, railing infill panel, stair tread, foot pedal,
drain cover, commercial and industrial flooring.
Technology
Welded galvanized grating. The cross bars are welded onto bearing
bars with the high pressure resistance welding machine and then
cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked
onto the bearing bars with grooving and then welding and hot dipped
galvanizing.
Features & Characteristics
High strength. The strength and the toughness are much higher than
cast iron. Can be used for terminals, airport and other large-span
and heavy loading condition.
Hot-dip galvanized treatment. Good rust-proof property,
maintenance-free replacement.
Anti-theft design. The cover and the frame is joint with hinge
offering security, safety and open convenience.
Savings investments. Large-span. Less lost for heavy load compared
with cast iron products. Cost can be saved for the risk of being
stolen or crushing one if cast iron is uses.
Aesthetic outlook. Simple lines and silver appearance meeting the
modern trend.
The best drainage. Leakage area of 83.3 percent, more than twice of
cast iron products.
Applications
Galvanized grating are designed and manufactured for various
industrial and civil constructions in city road, gardens, yard,
airport, railway and industrial engineering.
Hot dip galvanized steel grating is the best choice for steel
platforms in airports. Grating with 30 × 3 mm thick load bearing
bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is
the suitable one.
Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is
specializing in producing and exporting a complete series of steel
grating and other wire mesh products. Our steel grating goods have
various of kinds with different material, the mainly products are
high, middle and low - carbon steel, stainless steel, aluminum
steel grating. And have varous of style, for example platform steel
grating, special steel grating, serrated steel grating, high duty
steel grating, press locked steel grating and so on. With the
development of our steel grating business, we have gradually
improved our manufacturing expertise and engineering construction
capabilities. As well as we also produce other wire mesh products,
such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion
Mesh, Chain link mesh and so on. The series of wire mesh are export
to the Europe market, America, Middle East, Russia, India and so
on.
