Hot Dipped Galvanized Platform Steel Grating Press Welded

Ask Lasest Price
Brand Name :	ZHUOTE
Model Number :	SG32511
Certification :	ISO, SGS, CE
Price :	USD 25 per m2
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100000 m2 per year
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

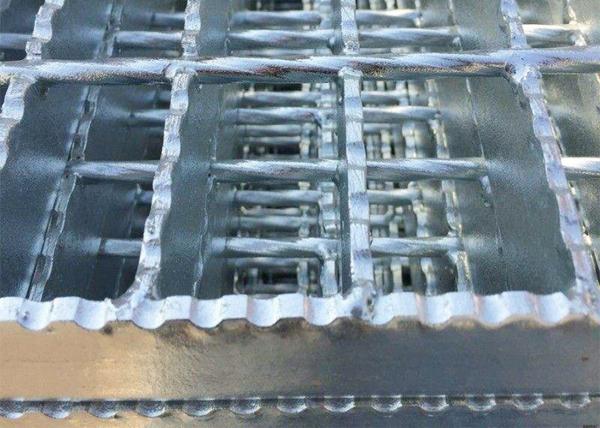

Hot Dipped Galvanized Platform Steel Grating Press Welded

Hot Dipped Galvanized Press Welded Grating for Industry Platform, Steel Stair, Walkway Driveway

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.

The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.

Hot Dipped Galvanized Platform Steel Grating Press Welded

1 Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
3 Twisted Cross Bar Pitch	38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc

Hot Dipped Galvanized Platform Steel Grating Press Welded

Technology

Welded galvanized grating. The cross bars are welded onto bearing bars with the high pressure resistance welding machine and then cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked onto the bearing bars with grooving and then welding and hot dipped galvanizing.
Features & Characteristics

High strength. The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Hot-dip galvanized treatment. Good rust-proof property, maintenance-free replacement.
Anti-theft design. The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments. Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
Aesthetic outlook. Simple lines and silver appearance meeting the modern trend.
The best drainage. Leakage area of 83.3 percent, more than twice of cast iron products.

Applications

Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.

Hot Dipped Galvanized Platform Steel Grating Press Welded

We do custom manufacture and can supply a high quality OEM service for clients. We pride ourselves that our knowledge and experience result in us delivering high-quality products, on time--all the time. We will work closely with you from concept to creation of the first sample to final delivery.

Hot Dipped Galvanized Platform Steel Grating Press Welded
