    6061 Material Aluminum I Bar Grating Powder Coating Roof Top Solar Walkway

    Ask Lasest Price
    Brand Name : TT
    Model Number : EM-025
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 25000piece per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    6061 Material Aluminum I Bar Grating Powder Coating Roof Top Solar Walkway

    6061 Material Powder Coating Roof Top Solar Walkway Aluminum Walkway Grating


    Product Show


    Swaged Rectangular Aluminum Grating

    Dimensions

    Cross bars are fully locked within the bearing bars, slightly below the top surface. It has clean and crisp lines. With nearly 80% open area, it is commonly used in public areas and is the industry accepted standard for industrial applications. If anti-slip is required, swaged rectangular aluminum gratings with a serrated surface are available upon request.

    Specification
    • Bearing bar size: 1" x 1/8" to 2–1/2" x 3/16" with 1/4" increments;
    • Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
    • Cross bar spacing (center-to-center): 4" or 2".

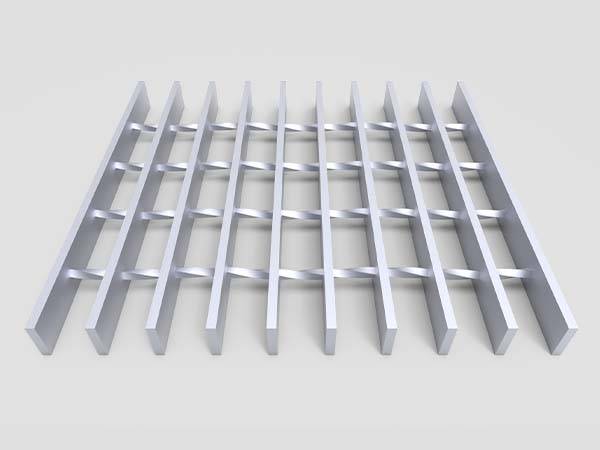

    Rectangular bearing bar of aluminum grating with a plain surface is displayed.


    GRATING IS AVAILABLE IN CARBON, STEEL, ALUMINUM & STAINLESS



    Product Specifications


    Aluminum gratingPart NumberBearing bar size
    I-Bar Swage Locked19-SI-4
    15-SI-4
    11-SI-4
    (1-3/16")
    (15/16")
    (11/16")
    I-Bar Swage Locked Close-Mesh8-SI-4(1/2")
    Rectangular Bar Swage-Locked & Press Locked19-SR-4,19-AP-4
    15-SR-4, 15-AP-4
    (1-3/16")
    (15/16")
    Press-Locked Close Mesh3-AP-4(13/16")
    Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh11-SR-4, 11-AP-4
    10-AP-4
    8-SR-4, 8-AP-4
    7-AP-4
    (11/16")
    (5/8")
    (1/2")
    (7/16")




    Application


    Because of its light weight, corrosion resistance, and non-sparking, Aluminum gratings are widely used in indoor ceilings, outdoor curtain walls and other decorative applications due to its lightweight, excellent corrosion resistance and non-sparking properties. It is suitable for industrial applications where the strength-to-weight ratio is important, such as wastewater treatment plants. It is mainly used for safety protection and served as walkways, floors, platforms, stair treads, fences, etc.



    Key Specifications/Special Features


    Material: Q235 in line with GB/T700 steel

    Bearing bar shape: plain (may be omitted in symbol of steel grating), serrated and I-shape type

    Surface treatments: hot-dipped galvanizing, painting or other anti-corrosive coatings
    Product Tolerance
    Allowed deviation of length ±5mm, while allowed deviation of width ±5mm
    Non-perpendicularity of bearing bar allowed no >10% of width of bearing bar
    Cross bar surface should not surpass bearing bar surface 1mm, beginning and end of cross bar should not surpass end surfaces of two sides of grating 2mm
    Stair ladder, compound steel grating, drainage pit/trench cover and railing/stanchion are also available
    Customized requirements are accepted
