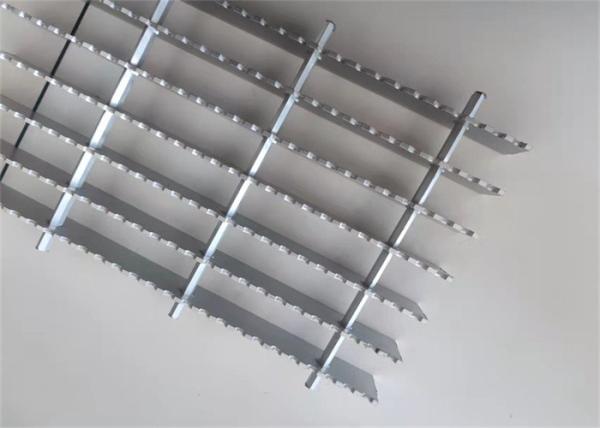

6063-T6 Material Walkway Serrated Aluminum Grating Catwalk Platform
Grating
Product Description
Aluminum bar grating is lightweight, corrosion resistant, and fully
recyclable. With an unmatched strength-to-weight ratio, these
products are ideal for both industrial and architectural
applications.
Manufactured from ASTM B221, 6063 or 6061 alloy, aluminum grating
is available in four distinct product types. Bearing bar spacings
range from 19/16” (1-3/16”) to 7/16” on center and cross bars at 4”
or 2” on center.
Product Type&Specification
| Material | Aluminum |
| Alloy Grade | 6063, 6061, 6082 |
| Finish | Powder Coat or Anodised |
| Max Width | 1205mm |
| Max Length | 7600mm |
Swaged I-Bar Aluminum Grating
Dimensions
Supported by I-shaped extruded bearing bars, swaged I-bar aluminum
grating carries the same load as the swaged rectangular aluminum
grating with lighter weight and less costs. In addition, the
striations at the top and bottom surfaces of the I bar increase the
friction and provide high slip resistance performance.
Specification
- Bearing bar size: 1" x 1/4" to 2–1/2" x 1/4" with 1/4" increments;
- Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
- cross bar spacing (center-to-center): 4"or 2".
Product Specifications
| Aluminum grating | Part Number | Bearing bar size |
| I-Bar Swage Locked | 19-SI-4
15-SI-4
11-SI-4 | (1-3/16")
(15/16")
(11/16") |
| I-Bar Swage Locked Close-Mesh | 8-SI-4 | (1/2") |
| Rectangular Bar Swage-Locked & Press Locked | 19-SR-4,19-AP-4
15-SR-4, 15-AP-4 | (1-3/16")
(15/16") |
| Press-Locked Close Mesh | 3-AP-4 | (13/16") |
| Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close
Mesh | 11-SR-4, 11-AP-4
10-AP-4
8-SR-4, 8-AP-4
7-AP-4 | (11/16")
(5/8")
(1/2")
(7/16") |
Product Differences
STANDARD ALUMINUM GRATING
Aluminum - Bearing Bars - 1-3/16” centers. Type 19P - Standard Bar. Type 19I
- I Bar.
CLOSE MESH ALUMINUM GRATING
Aluminum - Bearing bars at 15/16". Type 15P - Standard Bar. Type 15I - I
Bar.
Aluminum - ADA Compatible with 3/16” bars. Bearing bars at 11/16" centers.
Type 11P - Standard Bar. Type 11I - I Bar.
Main Features
1. Corrosion resistance, Rust resistance.
2. Anti-slip resistance, Economical Good air circulation.
3. Good drainage performance, Easy to install and uninstall.
4. High strength-to-weight performance, Durable and long lifespan.
5. Light-weight, Versatile, anti-skidding,
6. Anti-aging, Anti-sunburn Long life, high quality for anti-skid
7. Resistance to cutting and other benefits.
8. Low Maintenance
9. Simple structure beautiful and practical
