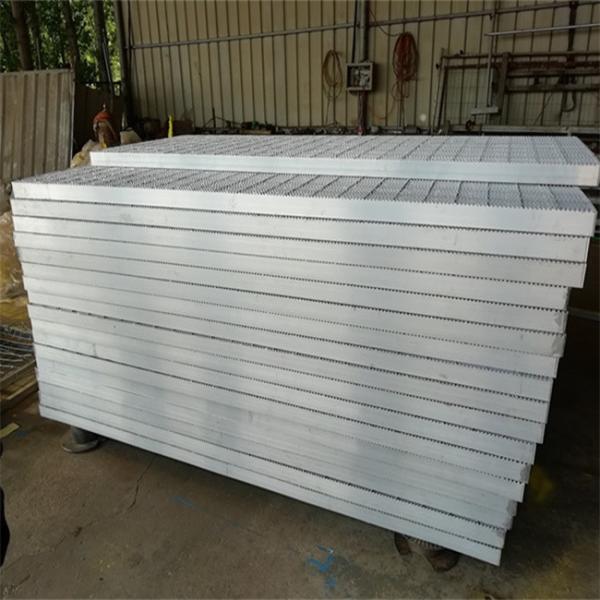

T6063 Material Garden Safety Walkway Aluminum Walkway Grating For Construction

Product Description

Swaged Grating

Swage-locked aluminum grating is manufactured with either an "I" or rectangular bearing bar. These

bearing bars are permanently locked to the cross rods with a swaging process which reshapes the

cross rods. Because of flange width, I-bars reduce the open spaces of the grating, yet I-bar

swage-locked is lighter weight and maintains load ratings. Swage-locked I-bar grating is the most

widely used and provides the strength equal to a rectangular bar of the same depth, but at far less

weight. Rectangular swage-locked is available with the cross rods flush with the top of the bearing bars,

or with the cross rods near the middle of the bearing bar. These options are available if a specific look is desired.

​

Rectangular v I-Bar Grating

Both rectangular and I-bar aluminum grating offer comparable strength.

Rectangular bar is offered in various crossbar configurations and can be either plain or serrated.

I-bar is only available in a swaged connection and is always striated. This bar is lighter weight than

rectangular bar and is a great option for any project that has weight limit restrictions.

Product Type&Specification

Aluminum Press Lock Bar Grating:

Bar grating made up of interlocking perpendicular bars
Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments
Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2"
Hydraulic pressure is used to bond the slotted bars together, locking the deep cross bar into the notched bearing bar
Smooth, clean look due to a flush top rectangular cross bar
Offers strong lateral stability
Used in architectural design because of clean look and tight spacing
1/4" and 1/2" openings conform to the “Americans with Disabilities Act” (July, 1991)
Slip resistant surfaces for floor grating available upon request​

Aluminum Flush Top Bar Grating:

Pressure locked by permanently attaching cross bars to bearing bars through a pressure applied swaging process
Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments
Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2"
Press locked bar grating serrated surface can be provided on aluminum grating when skid resistance is needed

Product Specifications

Product Differences

STANDARD ALUMINUM GRATING

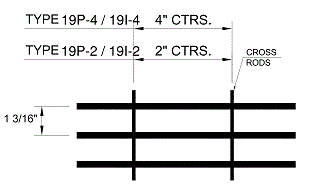

Aluminum - Bearing Bars - 1-3/16” centers. Type 19P - Standard Bar. Type 19I - I Bar.

CLOSE MESH ALUMINUM GRATING

Aluminum - Bearing bars at 15/16". Type 15P - Standard Bar. Type 15I - I Bar.

Aluminum - ADA Compatible with 3/16” bars. Bearing bars at 11/16" centers. Type 11P - Standard Bar. Type 11I - I Bar.

Application

Advantage

  Hebei Zhuote wire mesh products Co., LTD

We are Hebei Zhuote wire mesh Products Co., LTD., our company is located in the intersection of Beijing, Tianjin, Shijiazhuang three cities - the famous "China wire mesh town"

Peace. The company covers an area of 30000㎡, has more than 100 employees.

 As a modern enterprise, specializing in the production of steel grid plate,Grid plate, step plate, platform plate, punching plate series, guardrail net and other products.

The company is equipped with four automatic large-scale pressure welding production lines, welding technology is exquisite, beautiful, solid, smooth and burr free. In recent years, the company's sales increased steadily, last year's domestic trade sales of 75 million dollars, export sales reached 45 million dollars, domestic product sales involved in chemical energy, power plant substation, sewage treatment plant, new energy engineering, logistics transfer station, municipal engineering, for the domestic construction of a force. At the same time, the products are exported to Southeast Asia, Europe, the Middle East, Africa and other regions, and also create considerable foreign exchange income for the local.
