Aluminum Material 4x8 Lowes Small Hole Wire Expanded Metal Mesh For
Exterior Buildings
Product Description
Standard expanded metal is an extremely versatile and economical
product. It is offered in your choice of material, gauge, and
opening size. Standard expanded metal sheets are ideal when a
raised, slip-resistant surface is needed. It is available in
aluminum, carbon steel, galvanized steel, or stainless steel.
Product Model
| Material | Stainless steel,thin low carbon steel,brass plate, Aluminum plate and so on |
| Hole Shape | Diamond,square hole,scale hole,gothic etc.
|
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Thickness | 0.3-10.0mm |
| Surface treatment | Galvanized,PVC coated |
Product Specification
| NORMAL SIZE OF MESH | DIMENSION OF STRANDS | STANDARD SHEET SIZE |
| SWM X LWM (MM) | THICKNESS X WIDTH (MM) | WIDTH X LENGTH (MM) |
| 10 X 25 | 0.5 X 1.0 | 610 X 1800 |
| 10 X 25 | 0.5 X 1.0 | 610 X 2000 |
| 12 X 30 | 0.5 X 1.3 | 610 X 2000 |
| 12 X 30 | 0.6 X 0.9 | 610 X 2500 |
| 18 X 50 | 1.2 X 2.1 | 1830 X 1800 |
| 18 X 50 | 1.5 X 2.1 | 914 X 2500 |
Product Material
Steel plate, galvanized steel sheet, brass sheet, stainless steel,
nickel, aluminum, titanium, silver, plastics, vinyl sheet, etc.
Product Type

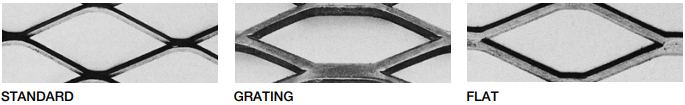

Product Standard dimensions and styles
| 1 | Carbon steel is the standard material. Dimensions (thick steel
plate) |
| 2 | GRATING 3.2mm-9.0mm |
| 3 | STANDARD 1.2mm-9.0mm |
| 4 | Flat 1.0mm-4.0mm |
Application
Expanded metals in recent years are used in all fields, such as
electric instruments, acoustic equipment, firing trays,
automobiles, vessels, machine covers, side road protection, roads,
buildings, lattices for windows, partitions, household equipment
including shelves, bird cages and flower stands.
product Features
Mesh of the expanded metal is uniform and does not elongate. The
light and rigid mesh is strong against impact. Handling and
execution are very simple, slip stopping is high, and easy
execution is economical, assisted by good day lighting and
ventilation.

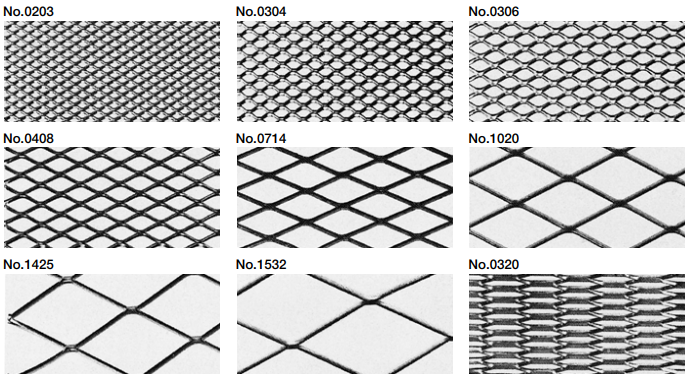

Product Type Pictures
Differences Between Expanded Aluminum and Steel Sheet Metal
Aluminum Expanded Sheet Metal
1.Lightweight, corrosion-resistant
2. Economical
3. Ideal for ornamental projects
4. Common applications include decorative designs and architectural
elements or industrial uses like fluid filters or vent system
components
Steel Expanded Sheet Metal
1. Weldable with good tensile strength
2. Eco-friendly
3.Ideal for scaffolding, construction enclosures, interior drywall
security
4. Low wind resistance
5. Screen and guarding properties
