    Serrated Heavy Duty Metal Floor Grates Galvanized Steel Bar 10mm Thickness

    Ask Lasest Price
    Brand Name : TT
    Model Number : 01
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 25000piece per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

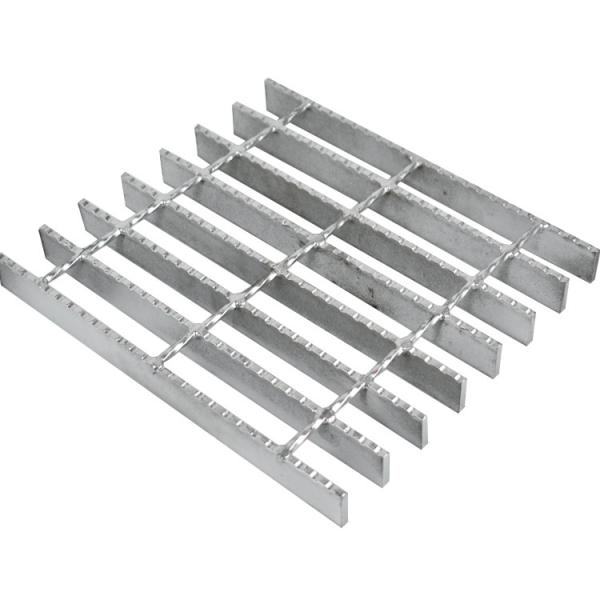

    Serrated Heavy Duty Metal Floor Grates Galvanized Steel Bar 10mm Thickness

    Galvanized Steel Driveway Grating Metal Serrated Bar Steel Grating

    Product Description

    Galvanized steel grates, also know as welded steel bar grating, the most strong and durable metal grating products. They are made from the mild carbon steel or stainless steel materials. We provide a full solution of 19-w-4 bar grating, press locked grating,heavy duty grating, steel stair treads,plank gratings,safety grating, trench cover,etc. All the gratings are extremely strong and durable for all the bearing application. And all grating products are fully recyclable.
    Due to the extremely strong and durable for all the bearing application,galvanized steel grates has become the most popular grating in the markets.The stability makes them have a much higher performance in the application.



    Specification


    MaterialLow Carbon Steel/Stainless Steel
    bearing bar size20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
    bearing bar pitch20,25,30,32.5,34.3,40,50,60,62,65mm
    bearing bar typePlain, Serrated (tooth-like), I bar (I section), Serrated-I
    crossbar size5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
    surface treatmentUntreated, hot DIP galvanized, cold DIP galvanized, painted, powder-coated, pickling, electrolytic polishing, or as customers’ requirement.


    Product parameter


    Product Process


    Product Application

    1Steel bar grating airfield landing mats
    2

    Steel bar grating airplane unloading ramps

    3

    Steel bar grating highway bridge decking

    4

    Steel bar grating sidewalk grates

    5

    Steel grating platforms

    6

    Steel bar grating vault covers

    7

    Steel bar grating ramps

    8

    Steel bar grating docks

    9

    Industrial flooring

    10

    Off-shore steel drilling rig platforms

    11

    Steel grating covered trenches

    12

    Steel grating food processing


    FAQ


    1.Should the customer pay for the sample, How much is it? All samples are free. but you may need to provide courier fees.

    2.Should the customer pay the delivery fee, How much is it? For the delivery fee, many samples are being requested to be sent, so we must get a delivery fee. If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express. If you do not request, I will choose a cheap one in China.

    3. Lead time?
    7-10 days per container, Challenge the industry's fastest time!

    4. I need special material, can you help?
    Yes, high standards material and high zinc thick can be chosen.

    5. How can I get a quote?
    Contact us with specification, size, quantity, and your port, then a fast quote with being sent.
    6.How is your payment term? Generally, our payment term is T/Y 30% in advance, the balance to be paid before loading or against the B/L copy. Other payment terms can be discuss
    7.How about the after-sale service?
    1)We will always keep the quality the same with the same and if there is something with the quality, we will make compensation for our customers. 2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery. 3)We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
