316 SS compact steel grating drainage heel guard grate
1200mm Long x 70mm Wide x 22mm Deep - Heelguard Pattern Stainless
Grate and Drain with Loose Outlet (Do it Yourself). Drain Base does
not come with folds. Outlet is supplied loose and is 50.8 OD.
Outlet can easily be cut on site by a holesaw wherever the customer
needs, then fixed using an adhesive (not supplied). Grate is our
Heelguard Pattern. Heelguard grate is also know as a wedge wire
grate. Our Heelguard grates come with full edge bars welded on the
side and at the end of the grate giving the grate a more
architectural and neat look. Other styles available, check out our
other styles. Both grate top and drain base are made from 304
Stainless Steel.
Stainless Steel Grates,
Shower grates, Bathroom grates, Pool grates, Balcony and Patio grates, Driveway
grates, Strip drains, and anywhere wet area drainage is required.
Parameters | Data |
Bear Bar Type | Flat Bar, I-Bar, Serrated Bar, etc.. |
Bearing Bar Size | 20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
Bearing Bar Spacing | 20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
Cross Bar Type | Twisted Steel Rod, Flat Bar |
Cross Bar Size | 3mm, 4mm, 5mm ,6mm or thicker |
Cross Bar Spacing | 50mm or 100mm |
Bearing Bar Length | Customerized from 1000mm to 6000mm or more |
Cross Bar Length | Under 1200mm |
Material Grade | Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
Treatment Available | Hot dipped Galvanized, Anodized, Polished and Powder Coated |
Standards | Steel Grating Standard | Steel Material Standard | HDG Coating Standard |
China | YB/T4001-1998 | GB700-88 | GB/T13912-92 |
USA | ANSI/NAAMM(MBG531-88) | ASTM-A36 | ASTM-A123 |
UK | BS4592-1987 | BS4360(43A) | BS729 |
Australia | ASl 657-1992 | AS3679 | ASl650 |

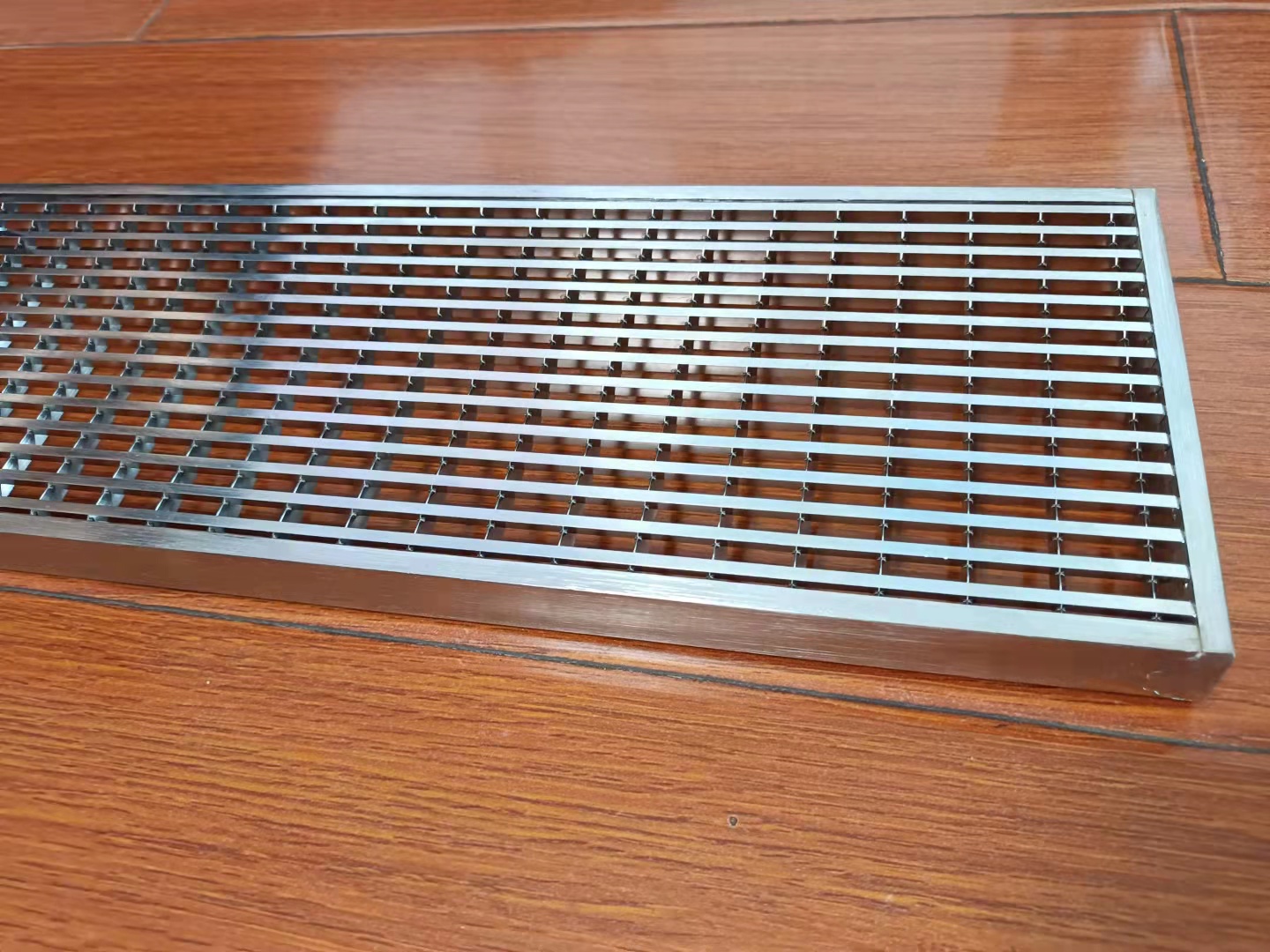

Product display:
Application:
indoor:bathroom, shower room, kitchen, Shopping mall, Super market,
warehouse, Hotels, Clubhouses, Gyms, Spas, Restaurants, etc.
outdoor:walkway,square, New Construction, Resorts, Driveways,
Balconies,Pools, Storm Drainage,Universities, Schools, Office
Buildings, etc
Product certification
FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.
2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us
know your requirements.
3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in
deliveries to meet customer requirements, so if you have a specific
deadline please talk to us. Some of our products are custom made,
so will have a longer delivery time, but we can give you an
estimated delivery date at the time of placing your order. We aim
to complete the majority of deliveries within 15 days.
