    steel stair treads and risers metal grate steps metal treads for outdoor stairs

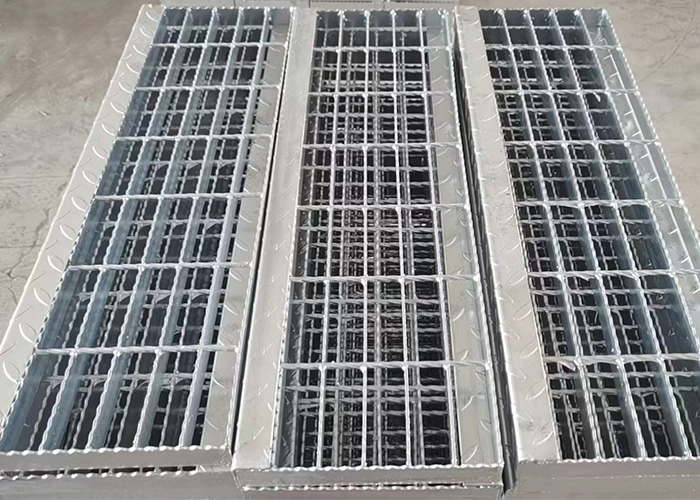

    T3 Hot Dipped Galvanized Stair Steps Grating


    Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China. We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.

    Product Description

    1. Specifications of Steel Galvanized Metal Grate Steps For Stairs :


    Steel Galvanized Metal Grate Steps For Stairs, constructed with holed and grooved side plates to ease fixing to stringers. Treads are safe, self cleaning, skid resistant and economical. A unique range of fittings to enable the easy installation of flat Kick and Toe Boards to standard handrail installations. Can be either welded or fixed via a grub screw reducing installation time and expense. Ideal for added protection and security to handrail walkways.


    Specifications
    1. Bearing bar

    25x3,25x4,25 x 5,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm


    2. Bear Bars pitch (mm)

    12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm.


    US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.


    3. Cross bar pitch

    38,50,76,100,101.6mm


    4. Material

    Q235,SS304


    5. Surface treatment

    Black, hot dipped galvanising, paint


    6. Standard

    China: YB/T 4001.1-2007



    USA: ANSI/NAAMM(MBG531-88)



    UK: BS4592-1987



    Australia: AS1657-1985


    Product Uses

    Stair tread steel gratings, also called grating steps, are made of low carbon steel or stainless steel. It is one of the most widely used and popular types of steel gratings. With the features of high strength, high bearing capacity, wear resistance, resistance to extreme temperature wind and rain, non-slip, anti-corrosion, beautiful and easy to install and remove extend the lifespan, stair tread steel grating is widely used as different types of steel ladders in the factory, school, park, stadium, civil and commercial buildings.
