Heavy Duty Steel Grating Grill Grates Used As Drain Cover Steel
Structure Platform Board
Describe:
Steel bar grating with high strength and firm structure is made up
of carbon steel, aluminum steel, or stainless steel. According to
the manufacturing methods, it can be divided into four types:
welded, press-locked, swage-locked, and riveted gratings. According
to the surface shapes, it can be divided into smooth and serrated
gratings. With various styles and sizes for choice, steel gratings
are widely used in everyday life, such as stair treads, walkways,
platforms, floors, various covers, wheeled equipment, security
screens, heavy-duty constructions, and so on.
Table shows:
Product name | Steel grating |
Material | Mild steel (Carbon steel) stainless steel 304, SS316 |
Material standard | USA:ASTM A36 UK:BS4360 Australia:AS3679 China:Q235 |
Bearing bar type | Smooth/flat bar serrated/toothed bar Smooth I bar Serrated I bar |
Bearing bar thickness | 2mm to 10mm, 3mm and 5mm recommended |
Bearing bar pitch | 12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
Bearing bar specification | flat bar and serrated bar
20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 I-section bar
25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
Cross bar | 5*5mm,6*6mm,8*8mm |
Cross bar pitch | 30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
Surface treatment | Hot dipped galvanized Untreated(self-color) Painted |
HDG standard | ASTM A123 BS729 AS1650 |
Grating Standard | AS1657-2013 BS4592-2006 ANSI/NAAMM(MBG531-88) |
Product name | Steel grating |
Material | Mild steel (Carbon steel) stainless steel 304, SS316 |
Material standard | USA:ASTM A36 UK:BS4360 Australia:AS3679 China:Q235 |
We promise : cost price for the first cooperation
Our advantages:
1. We are local manufactory---price are much competitive.
2. We have done international business for more than 20years-- high
reputation in worldwide.
3. We adhere to the operational theme of “We only produce products
to you praise".
Product Feature:
1. Save material: the same load conditions under the same material,
the corresponding, can reduce the support structure of the
material.
2. Reduce investment: provincial materials, provincial labor,
provincial construction period, free cleaning and maintenance.
3. Construction is simple: in the pre-installed support with a bolt
clamp fixed, one person can be completed.
4. Save time: the product does not require on-site re-processing,
installation is very fast.
5. Durable: the factory after hot galvanized anti-corrosion
treatment, impact resistance and pressure capacity.
6. Modern style: beautiful appearance, design specifications,
ventilation and light, giving a neat and smooth modern experience.
7. Lightweight structure: with less, light structure, and easy to
lift.
8. Antiplayer dirt: no rain, snow and dust.
9. Reduce the wind resistance: due to good ventilation, the case of
wind and wind resistance is small, reduce wind damage.
10. Simple design: no small support beam, simple structure, simple
design, no need to design steel grating detailed, only specify the
model can be, the factory can design layout on behalf of customers.
11. Acid and alkali corrosion capacity: PH6 to PH12.5 range, the
zinc layer to form a stable protective film, good corrosion
resistance
company introduction:
our company have a steel structure industrial park over 330,000m2
whose annual production of steel structure is 100,000 tons, the
company
possesses modern steel structure processing equipment and
production line, leading it as the assembly base of steel structure
building manufacturing in Rizhao area. The main target markets
include the equipment steel structure, public infrastructure,bridge
steel structure, space steel structure and so on.
Being committed to industrial products design and development,
steel components and new construction materials processing,
mechanical and electrical installation, integrated services of port
equipment operationand maintenance, we have undertaken
projects of Ore Wharf belt Conveyor System in Rizhao Port and
theHuaneng Power Plant Belt Conveyor Engineering, the Construction
of HYUNDAI Modern Factory in Rizhao, Yantai and Yancheng in China,
accumulated to more than 200 million square meters of
industrial factory building.

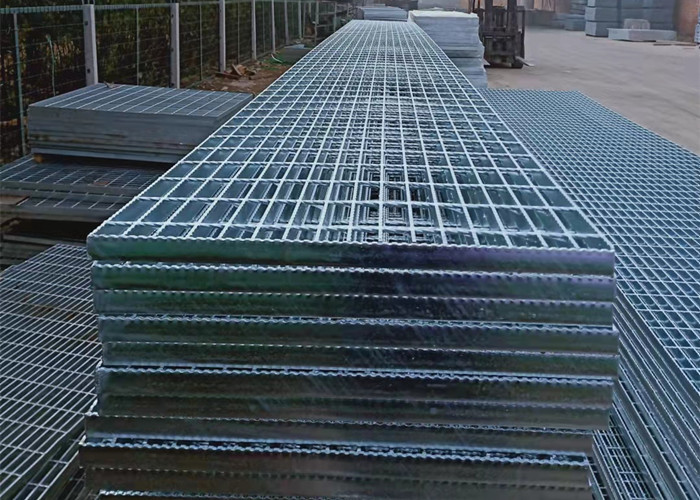

Heavy Duty Steel Grating pictures:
Why Are We The Best?
1. Strictly follow quality standards and manufacture metal products
according to international standards.
2. Over 10 years of development, we have a mature production line,
experienced workers and a technical team that is good at solving
various problems of customers.
3. Focus on details, from communication, customization, production,
packaging, and transportation to after-sales, every link is handled
carefully.
4. Rich export experience: our products have been exported to more
than 50 countries and regions in the world. 5. Passed ISO 9001:
2015 quality management system certification.
What Benefits Can You Get?
1. Get a reliable and trustworthy Chinese supplier.
2. Provide you with the most competitive factory prices to ensure
your interests.
3. You will get a free guide and recommend to you the most suitable
product or specifications for your project based on our experience.
4. Almost any industrial metal and wire mesh product needs can be
met you.
5. You can get free samples for most of our products
6. You can also distribute any of our products, we will fully
support to help you develop the local market.
