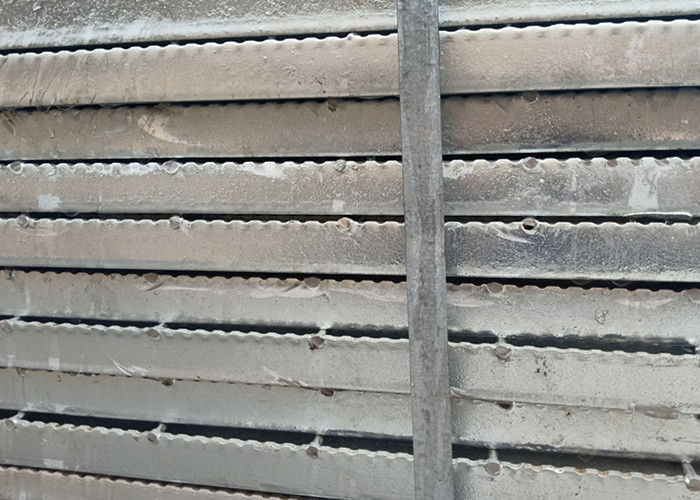

Serrated Steel Grating is a steel grating product with serrated
bearing bar. Due to its scientific and reasonable structure design,
it is usually used in parts that require high product bearing
capacity or appearance. It is a steel grating product manufactured
from a certain size of serrated steel through slotting (hole),
inserting, welding, finishing and other processes. It is a steel
grating product with a large bearing capacity and used for heavy
bearing capacity. The industrial platform has a large safety
factor. Surface treatment can be divided into galvanizing, painting
and dipping.
Classification
1.According to the welding method, it can be divided into:
pressure welding type, phase embedding type, through-lock type and
through-welding type;
2.According to the shape of the side surface of the loaded flat
steel, it can be divided into:
flat type, tooth type and "工" type, etc.;
3.According to its use, it can be divided into:
general-purpose steel grating and special-purpose steel grating
such as: trench cover, tread plate, etc.;
4.Steel grating is according to the material is divided into:
stainless steel and carbon steel grating.
| Place of Origin | Hebei China (Mainland) |
| Brand Name | FD |
| Model Number | FDPT140609 |
| Bearing bar | 30mm(height)x3mm(thickness) |
| Bearing bar pitch | 30 |
| Cross bar | 6x6 |
| Cross bar pitch | 50mm,100mm |
| Surface treatment | Hot dip galvanized |
| Flat bar type | Plain |
| Material standard | Low carbon steel |
| Galvanizing standard | US: ASTM (A123) |
| Steel grating standards | USA: ANSI/NAAMM (MBG 531-88) |
| Certification | CE,SGS,ISO90001. |
| Usage & Performance | Industrial platform, flooring and walkway, traffic, steel structure |
| Main market | USA,Australia, Japan, etc. |
| Packing | 1.Pallet in containers.
2.According to your packing requirements. |
| MOQ | 2/Tons |
| Supply Ability | 500 Tons/month |
| Payment Terms | T/T,L/C |
| Delivery Time | within 15 days after your deposit or L/C at sight |
| Port of delivery | FOB Tianjin |
| Sample time | 7 days |
INSTALLATION OF STEEL GRATING
1. There are two ways of installation for grating. One way is by
welding and other is by using installation fastener. The welding
method is suitable for those parts which will be fixed forever,such
as platforms for equipments,while the method by using installation
fastener has the properties of easy to assemble and disassemble and
of preventing destroying the zinc layer.
2. Installation fastener is suitable for all types of gratings. It
is made of up-fastener,down-fastener and inside cylinder bolt M10.
3. Welding method is angle welding at the first bearing bar of
every corners on the grating.Welding seam of which is not less than
20mm length and not less than 3mm height.
4. It at least needs four sets of installation fasteners on every
grating to fix.You had better install more fasteners on the
supportable construction when the span is larger.
5. We can supply stainless steel installation fastener to satisfy
our customer’s requirements.
6. Please indicate clearly the type,quantity and material when you
purchase installation fastener.
FAQ
Q: Are you a manufacture?
A: Yes, we have specialized in this field for more than 15 years.
Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will
work together to develop, win-win cooperation.
Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a
comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the
postage.
After the customer place order, we will deduct the postage from the
payment.
Q: How long would it take to produce a sample?
A: 3-5 days after receiving the postage or get the postage collect
account.
Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and
quantity.
Q: What is the MOQ? How many sets can fit in one Container?
A: Minimum order quantity can be discussed. We calculate the number
of products that a container can hold based on the data
Q: Do u know the deliver charge to my port or my country?
A: Yes, I have ship agent, will offer u the best vessel and charge.
