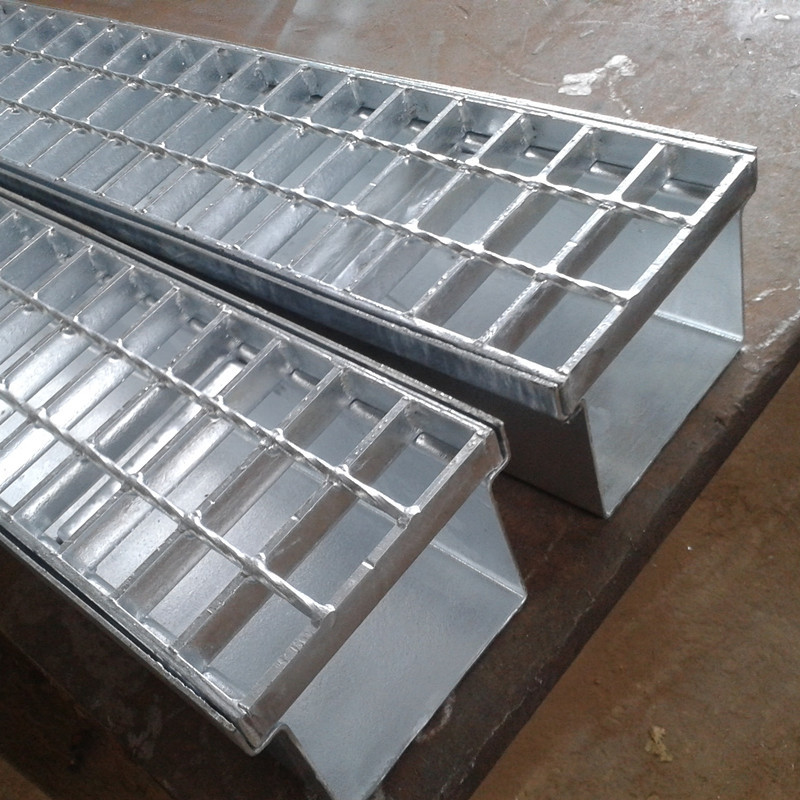

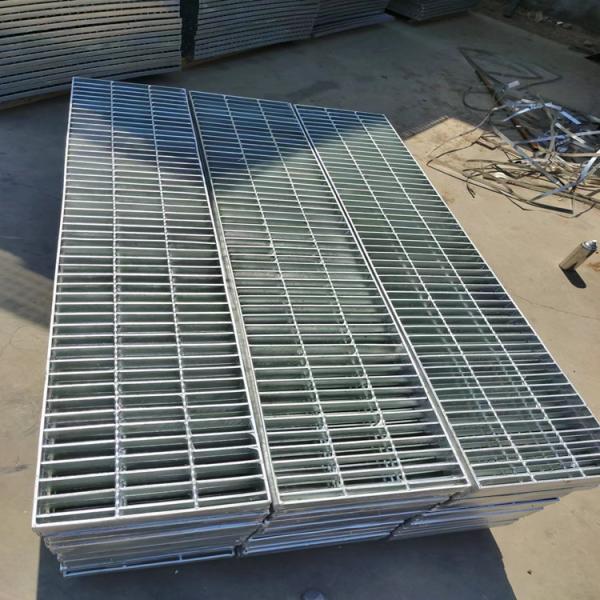

Hot-dip galvanized drain cover grate High quality carbon steel bar
grating
Steel grid surface treatment:
Hot dip galvanized, cold galvanized, paint, dip anti-rust oil, do
not deal with (general stainless steel do not deal with). Method of
making steel lattice plate: Pressed-welded steel grid is made up of
load flat steel and horizontal bar arranged in warp and weft at a
certain distance. It is welded into the original plate by hydraulic
resistance welding automation equipment of 200 tons, and processed
into the product required by customers through cutting, opening,
edge packing and other procedures. Load flat steel spacing:The
center distance between two adjacent flat steel receiving loads is
usually 30mm and 40mm. Cross bar spacing:The center spacing of two
adjacent cross bars is usually 50mm, 100mm, two kinds, can be
produced according to customer requirements. Superiority:Material
saving:The most economical way of material under the same load
condition, correspondingly, can reduce the material of supporting
structure. Reduce investment:Save material, save labor, save time
limit, avoid cleaning and maintenance. Construction is simple:In
the pre-installed support with bolts clamped or welded fixed, one
person can complete.
1.Welded Steel Grating
When selecting a bar grating product, consider Welded Steel Grating
first. Usually our most economical products, they provide a
comfortable walking surface with nearly 80 percent open area. This,
combined with the positive welded cross bar/bearing bar
intersection, make these products our most popular. Manufactured
from ASTM A-1011 carbon steel, welded gratings are recommended for
nearly all industrial floorhen selecting a bar grating product,
consider Welded Steel Grating first. Usually our most economical
products, they provide a comfortable walking surface with nearly 80
percent open area. This, combined with the positive welded cross
bar/bearing bar intersection, make these products our most popular.
Manufactured from ASTM A-1011 carbon steel, welded gratings are
recommended for nearly all industrial flooring applications.
2.Swaged Aluminum Grating
Aluminum grating products are light in weight, resistant to
atmospheric corrosion, non-sparking and offer an attractive
appearance. These characteristics make aluminum grating especially
suitable for water and sewage treatment facilities, marine
environments, food processing and petro-chemical installations.
3.Pressure Locked Grating
Grating Pacific offers two distinct types of Pressure Locked
Gratings which are identified by their method of assembly.
Manufactured without the introduction of heat or riveting, these
gratings provide a finished product with attractive architectural
lines. This pleasing appearance makes Pressure Locked Gratings
ideal candidates for architectural and ornamental applications such
as grilles, screens and fences. Additionally, pressure locked
methods of manufacturing allow for the production of close mesh
gratings with minimal open area.
4.Stainless Steel Grating
When considering grating for food processing applications,shipboard
use, or highly corrosive environments, Stainless Steel Grating is
often the most cost effective product.Commonly manufactured in 300
series alloys, stainless steel gratings are assembled by welding or
pressure locking to suit the specific needs of each application.To
specify Stainless Steel Grating, the type of grating is indicated
by designating one of the three profiles shown combined with the
bearing bar/cross bar spacing illustrated in the table below.
item | value |
Warranty | More than 5 years |
After-sale Service | Online technical support, Free spare parts, Return and Replacement |
Weight | 15.5kg/P |
Alloy Or Not | Non-Alloy |
Secondary Or Not | Non-secondary |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross
Categories Consolidation |
Application | Hotel |
Design Style | Contemporary |
Place of Origin | China |
| Fujian |
Application | Walkway |
Material | Steel |
Product name | Walkway |
Surface treatment | Hot dipped galvanized |
Color | Silver |
Packaging & Shipping
Packing details:
1. stick the label on each grating, the panel number will be marked
on the label.
2. insert the steel bracket through the gratings from bottom to the
top to fix the package. if the grating panel's size is less than
1500mm*1000mm, 4 pcs steel brackets per package. if more than
1500mm*1000mm, the steel brackets will be added accordingly.
3. bundle the gratings with the PVC tape.
4.Attach a thermoplastic tag to each package. Accordingly to th
tag, our clients can find each panel easily and swiftly.
5. wrap the gratings with plastic films.
Our Services
1. Our engineers can design the shop drawing according to your
projects and create 3D model.
2. Free samples can be provided.
3. The package method can be custimized.
4. We support the third party organization to come our factory for
inspection.
5. The after-sale service and installation method can be provided.
FAQ
Q
How can I get the sample to check your quality?
A
After price confirmation, you can require for samples to check our
product’s quality. If you just need a blank sample to check the
design and quality. We will provide you sample for free as long as
you afford the express freight.
Q
What can I get the price?
A
We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please tell us in your email so
that we will regard you inquiry priority.
Q
What is your term of delivery?
A
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choosethe one
which is the most convenient or cost effective for you.
Q
What about the lead time for the mass production?
A
Honestly, it depends on the order quantity and the season you place
the order.
