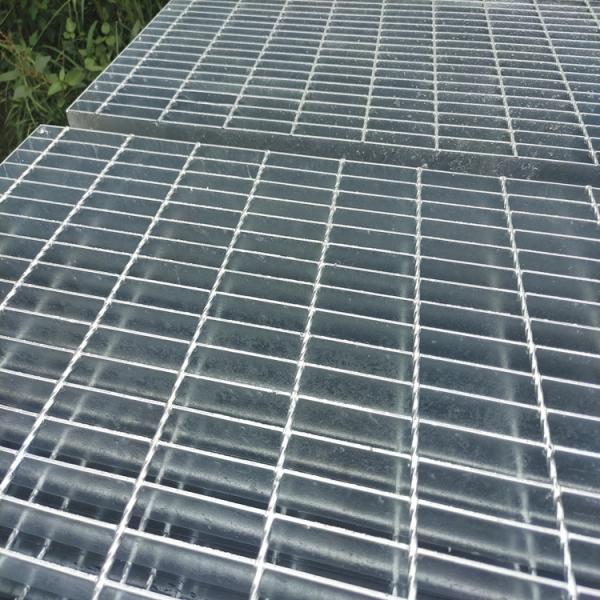

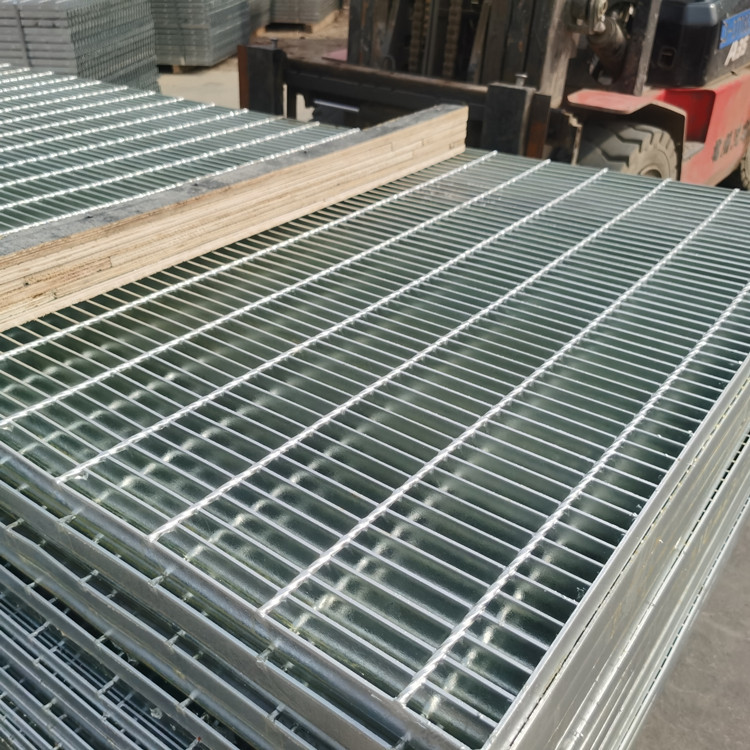

Galvanized steel driveway grating floor serrated steel grating
Steel bar grating is one of our main grating products,also know as
press weld steel bar grating.Due to the extremely strong and
durable for all the bearing application,whice become the most
popular grating in the markets.The stability makes them have a much
higher performance in the application.
1>material:carbon steel or stainless steel
2>cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm
are recommended.
3>Steel grating is made by the world first-class equipment,which
can arrange the bearing bar and cross bar in longitude and latitude
order to certain distance.cross bar is pressed into the bearing bar
by high tension resistance weldingring which is controlled by
computer.so we can produce high quality gratings with firm
welding,smooth surface and high strength.
4>Surface process of steel grating:Types:hot-dipped
galvanized,electro-galvanized ,spraying brushing. 95% people choose
hot-galvanized because its anti-acid and alkali corrosion capacity
range is from PH6 to PH12.5,a stable protective film will be formed
on the zinc surface.it has good anti-corrosive property.
5>Attractive appearance:Simple outline.silver colour and modern.
6>Optimum water draining:Water leakage area reaches 83.3%,which
is more than two times larger than that of cast iron.
7>Hot-dip galvanizing:Good antirust performance,maintenance free
and replacement free.
8>Design of preventing theft:The cover is connected with the
frame by gemel,which ensures protection against theft,safety and
convenient opening.
Bearing bar
- A flat bar withstanding the main load is in consistent with the
span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat
bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel
to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the
bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the
bearing bars .and in the same direction as the cross bars.
| Place of Origin | Hebei China (Mainland) |
| Brand Name | Zhuote |
| Model Number | FDPT140609 |
| Bearing bar | 30mm(height)x3mm(thickness) |
| Bearing bar pitch | 30 |
| Cross bar | 6x6 |
| Cross bar pitch | 50mm,100mm |
| Surface treatment | Hot dip galvanized |
| Flat bar type | Plain |
| Material standard | Low carbon steel |
| Galvanizing standard | US: ASTM (A123) |
| Steel grating standards | USA: ANSI/NAAMM (MBG 531-88) |
| Certification | CE,SGS,ISO90001. |
| Usage & Performance | Industrial platform, flooring and walkway, traffic, steel structure |
| Main market | USA,Australia, Japan, etc. |
| Packing | 1.Pallet in containers.
2.According to your packing requirements. |
| MOQ | 2/Tons |
| Supply Ability | 500 Tons/month |
| Payment Terms | T/T,L/C |
| Delivery Time | within 15 days after your deposit or L/C at sight |
| Port of delivery | FOB Tianjin |
| Sample time | 7 days |
1. who are we?
We are based in Hebei, China, start from 2014,sell to Domestic
Market(50.00%),North America(20.00%),Southern
Europe(10.00%),Eastern Europe(10.00%),South America(10.00%). There
are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
steel grating,FRP grid,Guardrail,sound barrier,filter mesh
4. why should you buy from us not from other suppliers?
The company insists on taking improving product quality as the
goal, taking excellent after-sales service as the purpose, carrying
out ISO 9001 standard to strengthen the internal management of the
enterprise, and pursuing the product quality of excellence
5.What's the term of payment?
1).T/T 30% deposit after order confirmed, 70% balance paid before
leaving factory.
2). L/C is available.
