Platform Flooring and Decking Diamond Walkway Grip Strut Grating
Grip Strut Product Description

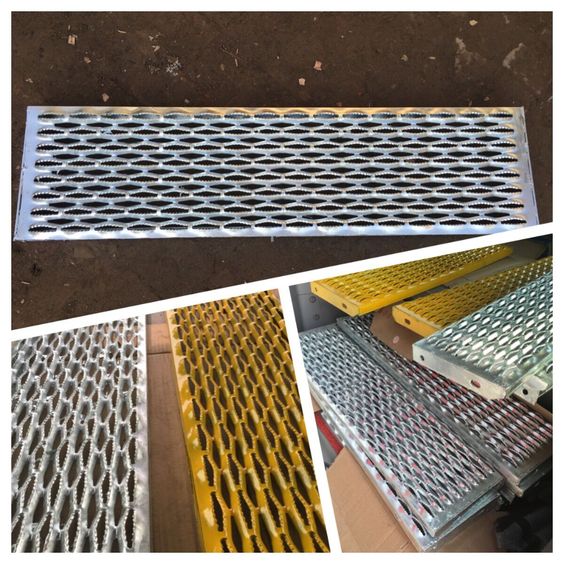

Anti-slip grip strut gratings are manufactured as one-piece
consructed channels with walking surfaces surfaces consisting of
serrated edges on top of diamond shaped openings. The serrated
surface is designed in an open diamond pattern. This allows
drainage of fluids, mud, chips and other accident-causing debris.
They can be cut or bending to any size and are ideal for wet or dry
conditions where good slip resistance and traction are needed,
adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank,
stair treads, ladder rungs, walkway channels and flat sheet
flooring for industrial applications and so on. Material:Mild
Carbon Steel,Aluminum,Stainless Steel. With the type of O-grip
strut and Diamond grip Strut.
Technical & Specification Data Table
| Material | | Low carbon steel, stainless steel or following customerrequirements |
|
| Bearing bar specifications (mm) | 20 X 3 to 100 X 10;
25 X 5 X 3, 32 X 5 X 3, 38 X 5 X 3, 40 X 5 X 3, 50 X 5 X 3, 50 X 7
X 4, 55 X 7 X 4, 60 X 7 X 4, 65 X 7 X 4, 70 X 7 X 4, 75 X 7 X 4mm,
or customerized |
| Bearing bar pitch (center to center) | 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32,
80, 100 mm etc, or customerized |
| Cross bar pitch (center to center) | 38, 50, 76, 100, 101.6mm etc, or customerized |
| Surface Treatment | Nature, hot DIP galvanizing, paint spraying or following customer
requirements |
| Features | Anti-rust, durable, strong, safe, easy installation |
| Packing | Wrapped with film and straps, wooden pallet packing |
| Meeting steel grating standards | A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM(MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985 |
Processing Plant
Company Profile & Certificate
Hebei Zhuote Wire Mesh Products Co., Ltd. is located in the
"Hometown of Chinese silk screen" - Anping County, Hebei Province,
is a modern steel grid production enterprise in the northern region
with a very large scale, the company set production, sales,
research and development and one.The company's products include
trench cover, tree pool cover, inserted steel grid and other steel
grid (grid) products, and steel mesh, guardrail net products.We can
also according to the needs of users, the production of large heavy
bearing steel lattice plate, special steel lattice plate and other
products.To provide design scheme and cost control for different
working environment, bearing capacity, span, shape and color as
well as cost.The company has a steel grid automatic production
line, a galvanized production line, nearly 50 technical workers,
research and development personnel, the products are exported to
Europe and The United States and Southeast Asia, quality and cheap
service thoughtful, welcome new and old customers to buy.All
products are in accordance with The Chinese YB/T4001-2007 standard,
or the United States ANSI/NAAMM(MBG53193), the United Kingdom
BS4592-11995 and Australia AS1657-88 standard products are widely
used in petroleum, chemical, port, power, transportation, paper
making, medicine, steel, food, municipal, real estate,
manufacturing and other fields.Hangjin always adheres to the
guiding ideology of "survival by quality and efficiency by
management".From contract signing, product production to delivery,
we fully implement ISO9001 quality management system
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service
on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you
the contact information of our some other clients for you to check
our credit. Besides, there is trade assurance from Alibaba, your
order and money will be well guaranteed.
3.How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and
missing parts before shipping. The detailed inspection pictures of
the order will be sent to you for your confirmation before
delivery.
4.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items.
Please feel free to feedback immediately if you are not pleased
with our quality or service.
5.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
6.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
7.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if
you have other payment,please contact me.
