    Tooth Hot Dip Galvanized Steel Grating Lattice Plate Construction Stair Foot Pedal

    Ask Lasest Price
    Brand Name : Zhuote
    Model Number : 303/45/100
    Certification : ISO9001-2015
    Price : Can discuss
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Square meters/day
    Delivery Time : 11 work days
    • Product Details
    • Company Profile

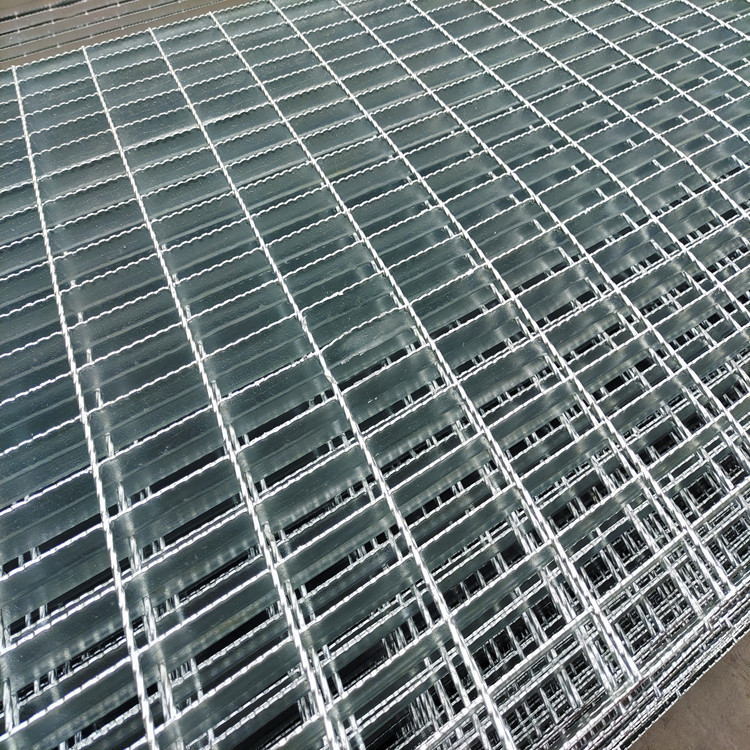

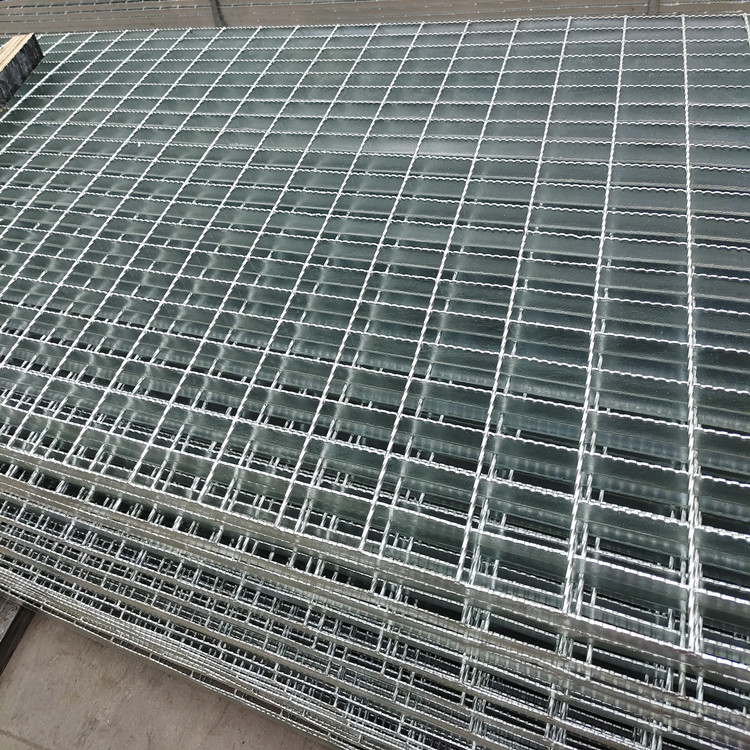

    Tooth Hot Dip Galvanized Steel Grating Lattice Plate Construction Stair Foot Pedal

    Hot dip galvanized tooth steel lattice plate construction stair foot pedal


    Product Description

    Steel grating is made of flat steel in a certain spacing and cross bars (twisted square steel, square steel, round steel, flat steel, etc.), and is welded into a square with a square in the middle. A kind of steel product of lattice, steel grating is mainly used for gutter cover, steel structure platform board, steel ladder step board, etc. The crossbar is generally twisted square steel. Steel grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, non-slip and explosion-proof.


    Specification
    a. Material: Q235B, A36, SS400, S235JR, SS304, SS316, SS304L, SS316L
    b. Dimension: Thickness: 3mm-10mm
    c. Flat bar pitch: 30mm,40mm,50mm,60mm
    d. Twisted bar pitch: 50mm, 100mm
    e. Length: Regular as 3m per piece
    f. Material: A36 or equivalent material, SS304, SS316
    g. Advantage: light weight, heavy load capacity, easy installation
    h. Surface treatment standard: GB/T13192, BS EN ISO 1461-2009
    i. Technical standard: YB/T 4001.1-2007 (GB), ANSI/NAAMM(MBG531-88) ( ANSI), BS4592-1987, AS1657-1985, DIN24537-1-2006
    j. Surface treatment: Hot DIP galvanized, painting, acid washing and polishing for stainless steel grating.
    k. Cross bar type: Round bar, I bar, twisted bar, twisted square bar. Flat bar type: Plain or serrated

    Application

    - Grating floor mat

    - Working platform

    - Grating floor panels

    - Grating manhole cover

    - Grating ditch cover

    - Stairs, stairs Grating

    - Traffic works, highways, factories, farms, urban areas

    - Oil and gas industries, cement, ships...


    Packing & Shipping

    Standard Grating Packing Method:
    1. Bandage and Paperboard: Generally applies to neat steel plate;
    2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
    3. Steel Pallet: Traditional export packing.


    Walkway Grating has great features like water and air ventilation, it’s easy to install and uninstall, suitable for wheel
    equipment.

    As a steel walkway grating supplier, we carry metal walkway grating products along with common accessories.
    Item
    Description
    1
    Bearing Bar

    25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
    50x5, 65x5, 75x6, 75x10,100x10mm etc;
    I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
    US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
    1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
    1 1/2'x1/8' etc.
    2
    Bearing Bar Pitch
    12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,
    40, 41.25, 60, 80mm etc
    US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
    3
    Twisted Cross Bar Pitch
    38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
    4
    Material Grade
    ASTM A36, A1011, A569, Q235, S275JR, SS304,
    Mild steel & Low carbon steel, etc
    5
    Surface Treatment
    Black, self colour, hot dip galvanized, painted, spray coating
    6
    Grating Style
    Plain / Smooth, Serrated /teeth, I bar, serrated I bar
    7
    Standard
    China: YB/T 4001.1-2007,
    USA: ANSI/NAAMM(MBG531-88),
    UK: BS4592-1987,
    Australia: AS1657-1985, Japan:JIS
    8
    Application
    China: YB/T 4001.1-2007,
    USA: ANSI/NAAMM(MBG531-88),
    UK: BS4592-1987,
    Australia: AS1657-1985, Japan:JIS

    Tooth Hot Dip Galvanized Steel Grating Lattice Plate Construction Stair Foot PedalTooth Hot Dip Galvanized Steel Grating Lattice Plate Construction Stair Foot PedalTooth Hot Dip Galvanized Steel Grating Lattice Plate Construction Stair Foot Pedal


    Company philosophy
    We believes in building and retaining strong client relationships based upon reliability, flexibility and design. Our primary
    objectives are to achieve high standards of excellence with the ability to offer a bespoke service to individual clients.

    Technical Support
    The Technical Department is able to recommend the most appropriate grating or louvre for a particular project before preparing a panel layout which will make the most economical use of the selected material. Our practice is to work closely with the architect from concept to final design, preparing CAD drawings and advising on secondary steelwork, alternative fixing methods and loading specifications.


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: 30% T/T in advance ,balance before shippment.
