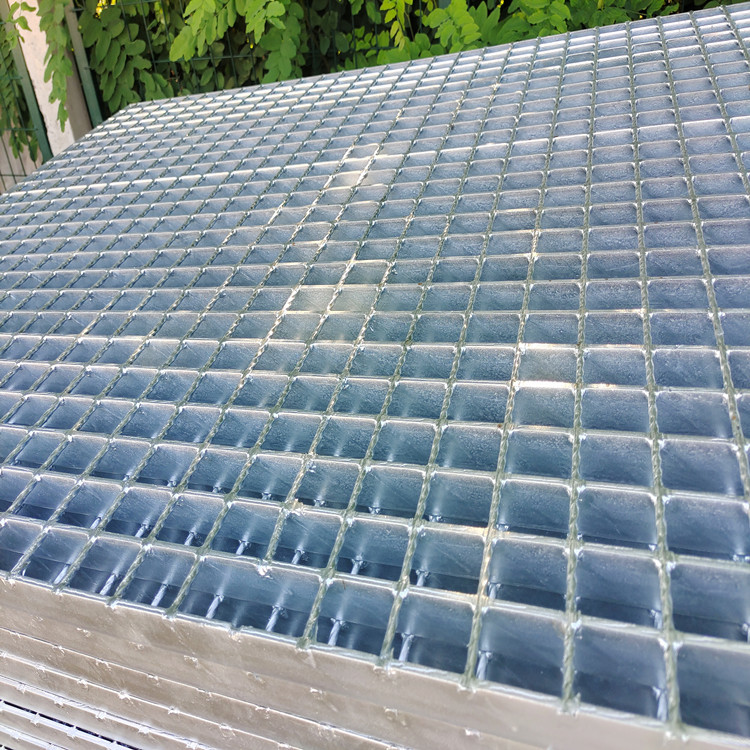

Heavy Duty Hot Dip Galvanized Cross Bar 6x6mm Welded Steel Grating
Product Description:
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25
x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3,
32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7
x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80,
100 mm etc, also be according to client's requirement and 30, 40,
60mm are recommended, America standard is available <1'' x
3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x
1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
Welded steel grating:
when selecting a bar grating product, consider Welded Steel Grating
first. Usually our most economical products, they provide a
comfortable walking surface with nearly 80 percent open area. This,
combined with the positive welded cross bar/bearing bar
intersection, make these products our most popular. Manufactured
from ASTM A-1011 carbon steel, welded gratings are recommended for
nearly all industrial flooring applications.
| No. | Item | Description
|
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
steel gratings application:
flooring steel gratings
stair treads
sun shades
drain covers
security screen
manhole covers
mezzanine flooring
earth mats
shelving
Stanchions (hand rails)
trench covers
