    Construction Material Heavy Duty Steel Grating Galvanized Low Carbon

    Ask Lasest Price
    Brand Name : Zhuote
    Model Number : 325/30/100
    Certification : ISO9001-2015
    Price : Can discuss
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Square meters/day
    Delivery Time : 5 - 8work days
    • Product Details
    • Company Profile

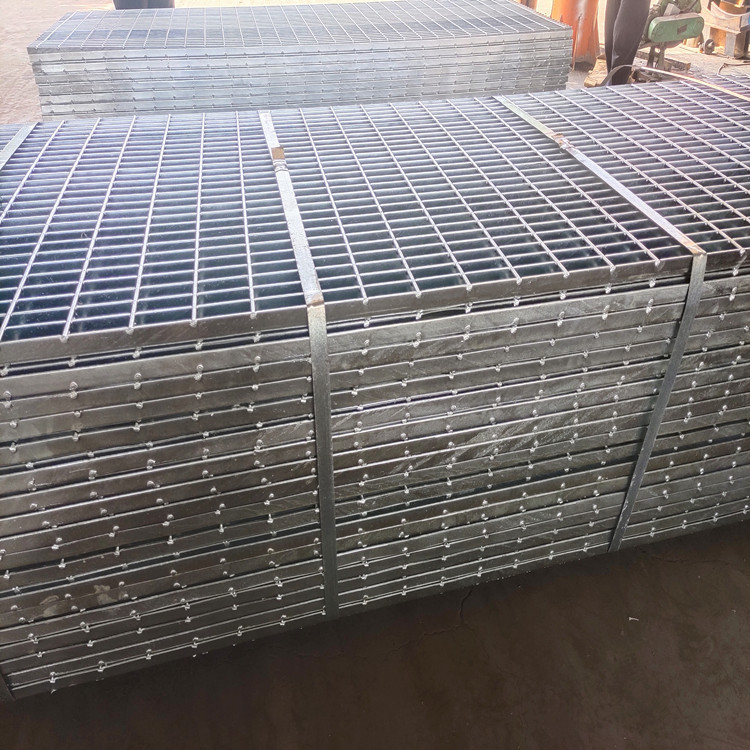

    Construction Material Heavy Duty Steel Grating Galvanized Low Carbon

    Petroleum equipment platform construction material galvanized heavy steel grating


    Product Description

    1.Material :Low carbon steel, stainless steel, aluminum alloy
    2.Shape and specification
    Surface Treatment: Untreated, Painting or Hot Dipped Galvanizing or as requrest
    3.Types of Steel Grating: Plain/smooth type, I type ,Serrated/teeth type.
    4.Cross bars shape: square bars, twisted square bars,round bars

    Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc

    Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc

    Bearing Bar Pitch: 30mm, 40mm, 50mm, etc

    Cross Bar Diameter: 5mm, 6mm, 8mm, etc.

    Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc


    Product Application
    It is widely used as flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp,dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian in factories, workshops, motor rooms,trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
    No.ItemDescription
    1Bearing bar

    25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

    I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

    US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

    2Bearing bar pitch

    12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

    US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

    3Cross bar5*5,6*6,8*8mm(twisted bar or round bar)
    4Cross Bar Pitch38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
    5Material Grade

    ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400,

    Mild steel & Low carbon steel,etc.

    6Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating
    7Flat bar typePlain,Serrated(tooth-like),I bar (I section)
    8Standard

    China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88),

    UK:BS4592-1987,Australia:AS1657-1985,

    Germany:DIN24537-1-2006,

    Japan:JJS.


    Construction Material Heavy Duty Steel Grating Galvanized Low CarbonConstruction Material Heavy Duty Steel Grating Galvanized Low CarbonConstruction Material Heavy Duty Steel Grating Galvanized Low Carbon


    Our services

    1. Any enquiry will be replied within 12 hours.

    2.Sample production and delivery service can be provided, as for any information about the sample or any specific requirements for the sample, please contact us via telephone , mail or online trade manager.

    3.OEM/ODM is available. Printing logo on customized products.Customized design and material. Customized packing for your products.

    4.Before-sale and after-sale service. All products have been strictly quality test in our factory before packing.


    FAQ
    1. who are we?
    We are based in Hebei, China, start from 2014,sell to Domestic Market(50.00%),North America(20.00%),Southern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 101-200 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    steel grating,FRP grid,Guardrail,sound barrier,filter mesh.

    4. why should you buy from us not from other suppliers?
    The company insists on taking improving product quality as the goal, taking excellent after-sales service as the purpose, carrying out ISO 9001 standard to strengthen the internal management of the enterprise, and pursuing the product quality of excellence
