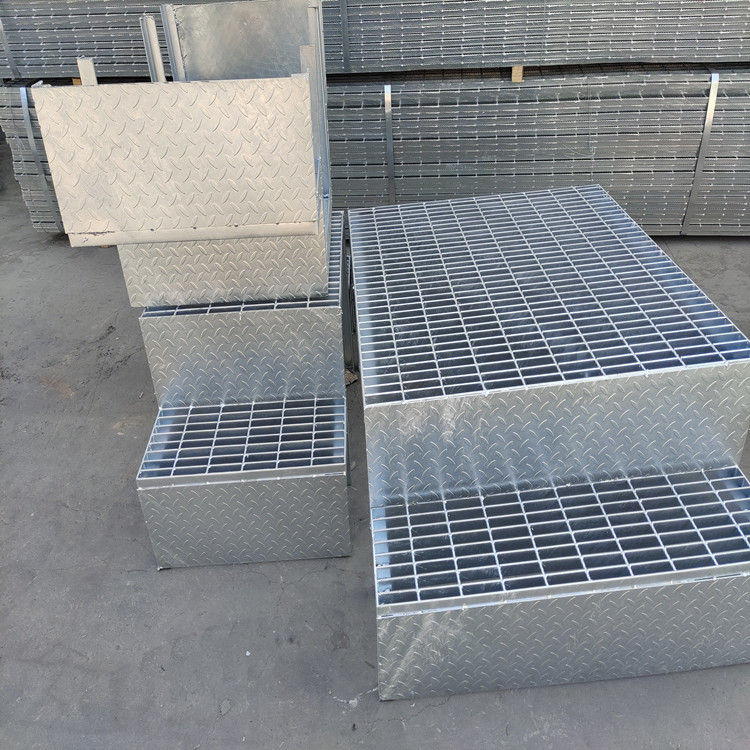

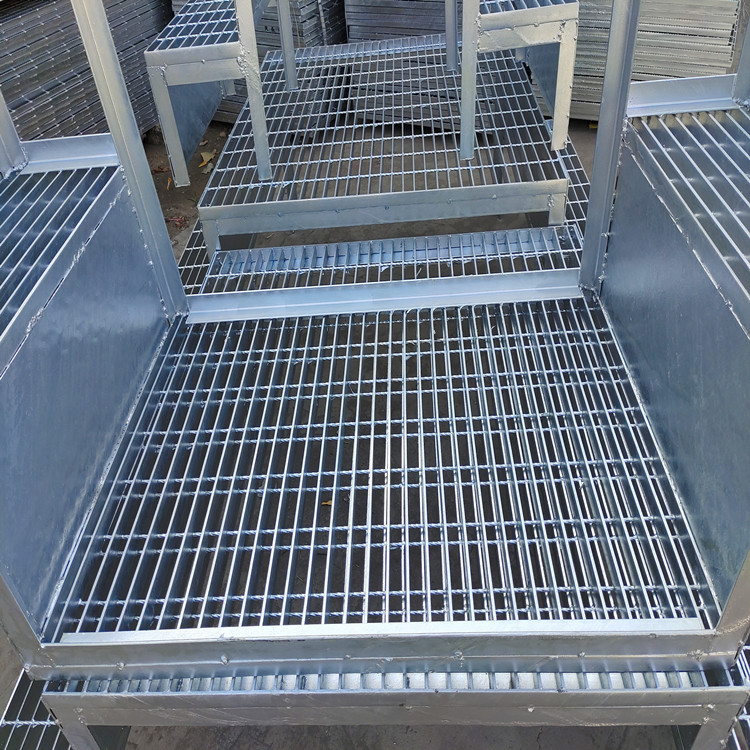

Overhaul platform steel grating pedestrian passage grating pedal
Steel Grating made by welding with flat steel and cross/round bars
with certain distances. Our Galvanized Steel Grating enjoy the
feature of high strength, light structure, high bearing,
convenience for loading and other properties. The hot dipped zinc
coating gives the product excellent anti-corrosion.
1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type Serrated/teeth
type.
3)Open-end type and closed-end type
SYI Serrated Galvanized Steel Grating Weight specifications.
Processes:
Steel grating is made by bearing bar and cross bar according to the
flat-steel weft arrangement, in high-pressure spacing on resistance
welder welded by cutting, incision, opening, overlock process such
as processing and into customer requirements finished products.
Material:
Carbon steel, Stainless steel ,and so on .
Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated
Size:
Standard size or OEM(Making as the customers' request).
Features
Intensity, light structure: strong grid bonding structure makes it
with high load, the structure characteristics, facilitate hoisting
light; Beautiful appearance, durable: hot-dip galvanized surface
treatment make it fairly good corrosion resistance, the surface
luster beautiful; Ventilation, lighting, heat dissipation,
explosion-proof, prevent slippery properties is good; Deposition
prevention dirt.
Useage:
Widely used in petroleum chemical industry, power plant, water and
sewage treatment plants, municipal engineering, environmental
sanitation engineering fields of the platform, footpath, zhanqiao
pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
Packing:
Naked or packing as the customers' request
| Item | Description |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
Hebei Zhuote Wire Mesh Products Co., Ltd is a manufacturer, who is
specializing in producing and exporting a complete series of steel
grating and other wire mesh products.
Our steel grating goods have various of kinds with different
material, the mainly products are high, middle and low - carbon
steel, stainless steel, aluminum steel grating. And have varous of
style, for example platform steel grating, special steel grating,
serrated steel grating, high duty steel grating, press locked steel
grating and so on. With the development of our steel grating
business, we have gradually improved our manufacturing expertise
and engineering construction capabilities.
As well as we also produce other wire mesh products, such as Fence,
Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link
mesh and so on. The series of wire mesh are export to the Europe
market, America, Middle East, Russia, Australia, Africa countries.
We do custom manufacture and can supply high quality OEM service
for clients.
