Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate

Ask Lasest Price
Brand Name :	Zhuote
Model Number :	303/30/100
Certification :	SGS&ISO 9001, SGS, ISO9001
Price :	Can discuss
Payment Terms :	L/C, T/T
Supply Ability :	1000 Square meters/day
Delivery Time :	9-11 work days

Add to Cart

Product Details
Company Profile

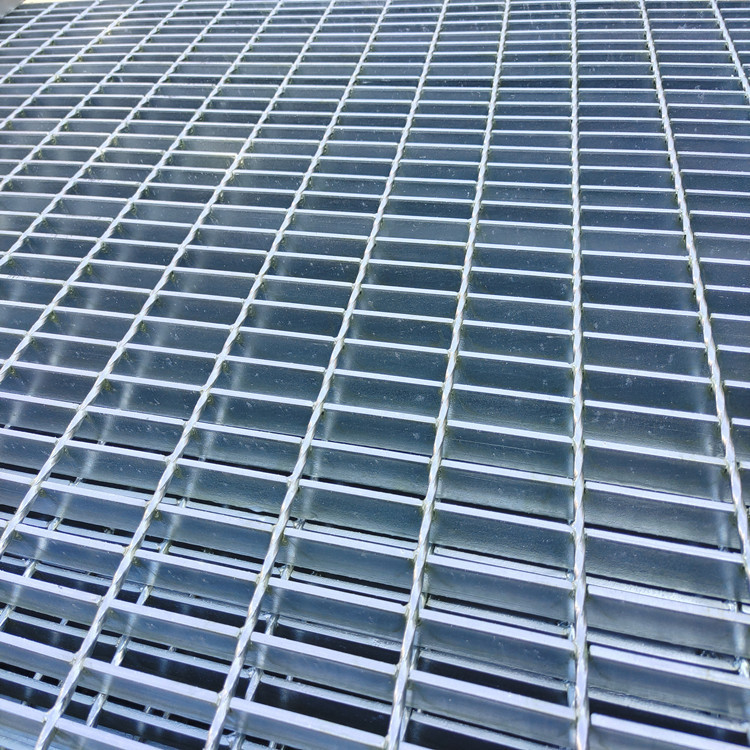

Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate

Park Garden platform corridor galvanized grating machine pressure welding grating plate

Product Description

1. Brief Introduction of press locked steel gratings
With Press-Locked Grating the cross bars and bearing bars are notched and pressed together through a high pressure manufacturing process. The result is a bi-direction flush surface that assures a firm, rigid connection and makes it aesthetically appealing for architectural applications. It is available from stock in twp bearing bars heights, in plain or corrosion-resistant galvanized steel, or aluminum. A variety of other bar heights, bar spacings and materials is available by special order.
2. Specifications of the press-locked steel gratings for Disney (Shanghai) Tomorrowland Project.
1) Model number: G303/30/30LFG;
2) Bearing bar size: 30*3mm flat bar;
3) Bearing bar pitch: 30mm;
4) Cross bar size: 10x2mm flat bar;
5) Cross bar pitch: 30mm

Surface Treatment of hot dip galvanized steel grating
hot dipped galvanized
Untreated
Painting
95% people choose hot dipped galvanized because its anti-acid and
alkali corrosion capacity range is from PH6 to PH12.5,a stable
protective film will be formed on the zinc surface.it has good
anti-corrosive property.
Installation of hot dip galvanized steel grating
1>The shape of bearing bar: Plain type (may be omitted in the
symbol of steel grating), Serrated type and I-Shape type.
2>Bearing bar pitches:12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40,
60mm, of which 30mm & 40mmare recommended.
3>Cross bar pitches:38, 50, 60,100mm, of which 50mm & 100mm are
recommended.
Packaging & Shipping

The packing of Galvanised Grating:
normally packed in pilling up ways with two pieces of square wood
on both upperand bottom sides.there are four or six pieces of M10
long bolt penetrading the gratings and screwing together.it is
suitable for loading and unloading by fork-lift and crane.
Delivery: 7-15 days

Our Services

We have specialized engineers who can design the economical steel grating's specifications according to your load capacity requirement, as well as design the size and shape for each piece of steel grating according to your support structure drawings with the purpose for the convenience of installation and production.

No.	Item	Description
1	Bearing bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Cross bar pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grate	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Type	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS
8	Application	-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate

FAQ

Q1. who are we?

We are based in Hebei, China, start from 2008,sell to Domestic Market(65.00%),Eastern Europe(37.00%),North America(34.00%),South America(23.00%),Central America(7.00%),Southeast Asia(5.00%),Mid East(3.00%).

Q2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3.what can you buy from us?
Stainless wire mesh,Crimped wire mesh,Welded wire mesh,King Kong mesh,Stainless Expanded mesh,Window screening,etc.
Q4. What are our advantages?
Our company has 6 mature production lines, 42-person R&D team, 24-hour online service and experienced sales team, strict inspection department,and perfect after-sales service system.
Q5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency: USD;
Accepted Payment Type:T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
