SS316 G325/30/100 Machine Welded Stainless Steel Grating With
Polish
Machine Welded Stainless Steel Grating Specifications:
| Item | Description |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3,
32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1
1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1
1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2,
15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4”etc |
| Material Grade | SS304/SS316/SS316L |
| Surface Treatment | Polish |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
Product Name:Polish Stainless Steel Grating
Raw Material:SS304/SS316/SS316L
Bearing Bar Type:Plain Type,Serrated Type
Cross Bar Type:Round Bar,Twist Bar
Bearing Bar Pitch:30mm/40mm/20mm or other specification
Cross Bar Pitch::30mm/40mm/50mm/100mm/150mm/200mm/250mm
Surface treatment:Polish
Type Size:6000mm*1000mm or other size can product
Polish Stainless Steel Bar Grating FAQ
1.Are you factory or Middleman?
We are professional manufacturer in fence since 1990, our factory
is 30000 square meters located in Hebei, China.
2.How long can be your products survived?
The products of our factory can be used at least 15 years as
standard;But we also
according the demand of clients,
3.Do your factory provide warehousing services?
There is a place of our factory, which is specially used to store
goods, after finished of
goods.The customers can storage for free.
4.What is the payment terms?
Our factory payment term : T/T by 30% as deposit, 70% as balance
before leaving factory.
5.why choose our company?
All of the terms can discuss,for the payment way,and the
specification,we are the
factory,so can we offer you the best price than the trader
company,if you want to give us a chance,we will let you
satisfaction,so give us a
chance,you find a better factory,i find a better customer
Polish Stainless Steel Bar Grating Features:
Above the common steel grating ,it is more anti - corrosion, anti -
rust, long time, wide
place, beautiful
Polish Stainless Steel Bar Grating Useful:
Sightseeing platform, ditch cover, shipyard platform, pickling
pool, car wash, bath center,
school, workshop, kitchen

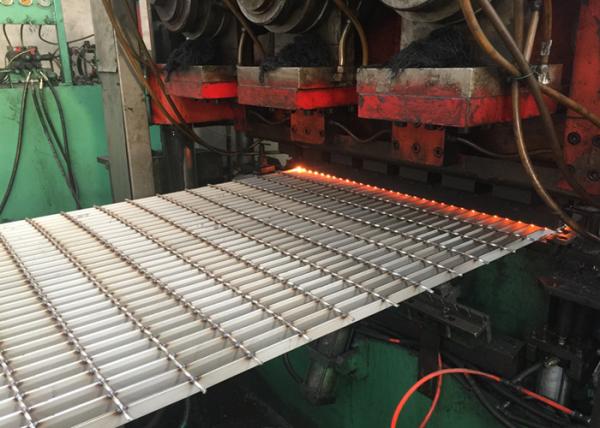

product Picture:
