Product Description
1. SYI Serrated Galvanized Steel Grating Weight specifications.
| Bearing Bar | 25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm
etc |
| Usual Pitch | 41mm x100mm & 30mm x100mm |
| Special Pitch | 41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm |
| Material Standard | Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc |
| Surface Treatment | galvanized,black,painted,spray coating,self color |
| Bearing Bar Type | serrated/teeth plain/smooth I bar Serrated I bar |
| HS code | 7308900000 |
| Sample | small pc for free |
2. Serrated Galvanized Steel Grating Weight
Material of steel driveway grates grating is usually low carbon
steel ,stainless steel. the size is commonly standard or as
required.
Packing:Naked or as the customers' request.
certificate is ISO 9001:2000.
3. Processes:
Steel grating is made by bearing bar and cross bar according to the
flat-steel weft arrangement, in high-pressure spacing on resistance
welder welded by cutting, incision, opening, overlock process such
as processing and into customer requirements finished products.
4. Material:
Carbon steel, Stainless steel ,and so on .
5. Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated
6. Size:
Standard size or OEM(Making as the customers' request).
7. Features
Intensity, light structure: strong grid bonding structure makes it
with high load, the structure characteristics, facilitate hoisting
light; Beautiful appearance, durable: hot-dip galvanized surface
treatment make it fairly good corrosion resistance, the surface
luster beautiful; Ventilation, lighting, heat dissipation,
explosion-proof, prevent slippery properties is good; Deposition
prevention dirt.
8.Useage:
Widely used in petroleum chemical industry, power plant, water and
sewage treatment plants, municipal engineering, environmental
sanitation engineering fields of the platform, footpath, zhanqiao
pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
9.Packing:
Naked or packing as the customers' request
10.Standard steel grating supplied is manufactured with a
resistance-weld process using heat and pressure. Crossbars are
fused to bearing bars to assure maximum strength.
Company profile
Hebei Hangjin wire mesh products Co., Ltd. is located in the
"Hometown of Chinese silk screen" - Anping County, Hebei Province,
is a modern steel grid production enterprise in the northern region
with a very large scale, the company set production, sales,
research and development and one.The company's products include
trench cover, tree pool cover, inserted steel grid and other steel
grid (grid) products, and steel mesh, guardrail net products.We can
also according to the needs of users, the production of large heavy
bearing steel lattice plate, special steel lattice plate and other
products.To provide design scheme and cost control for different
working environment, bearing capacity, span, shape and color as
well as cost.The company has a steel grid automatic production
line, a galvanized production line, nearly 50 technical workers,
research and development personnel, the products are exported to
Europe and The United States and Southeast Asia, quality and cheap
service thoughtful, welcome new and old customers to buy.All
products are in accordance with The Chinese YB/T4001-2007 standard,
or the United States ANSI/NAAMM(MBG53193), the United Kingdom
BS4592-11995 and Australia AS1657-88 standard products are widely
used in petroleum, chemical, port, power, transportation, paper
making, medicine, steel, food, municipal, real estate,
manufacturing and other fields.Hangjin always adheres to the
guiding ideology of "survival by quality and efficiency by
management".From contract signing, product production to delivery,
we fully implement ISO9001 quality management system, ERP system
and 5S management, and wholeheartedly provide customers with the
best quality products.

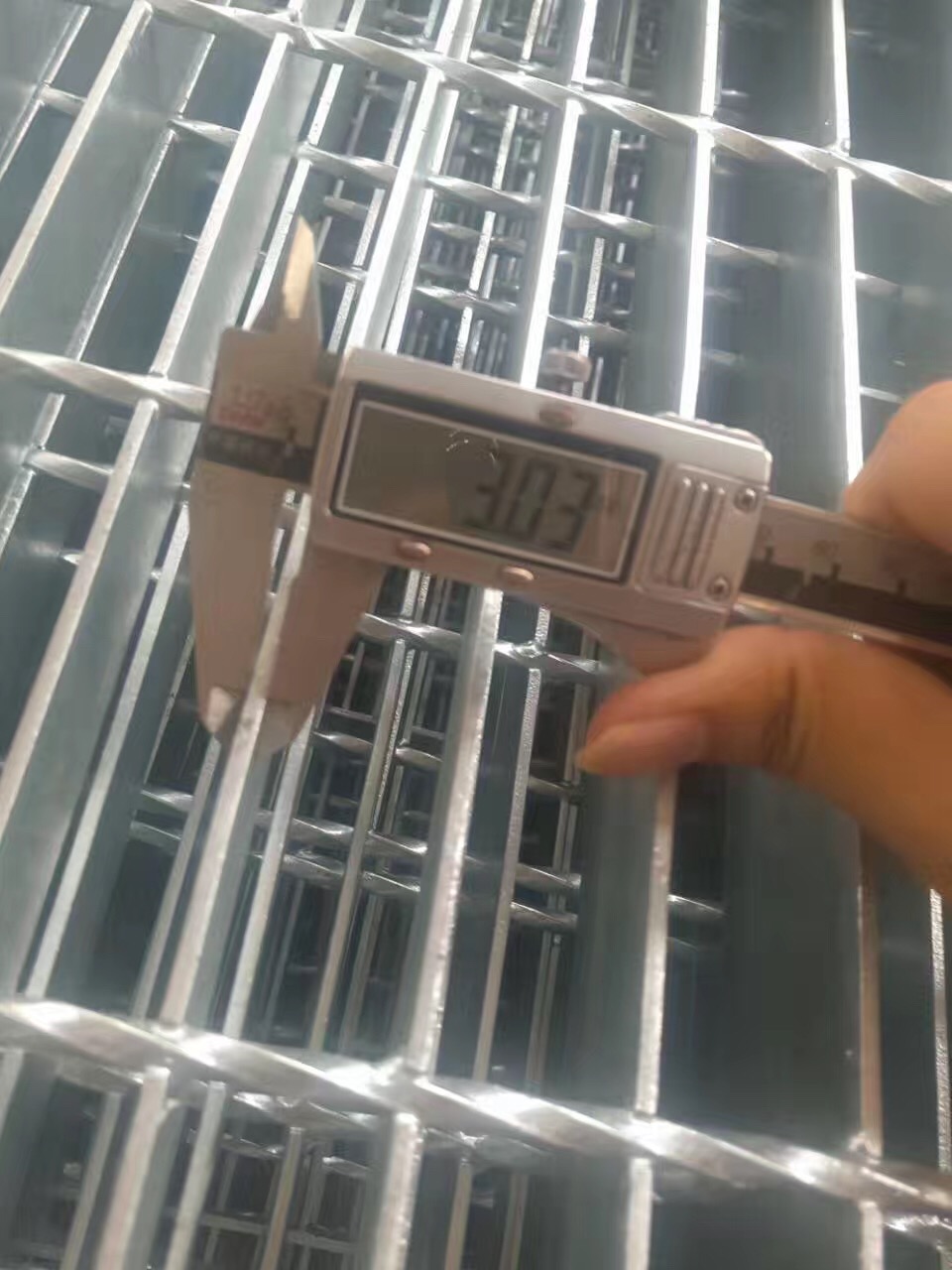

Product details
Product certification

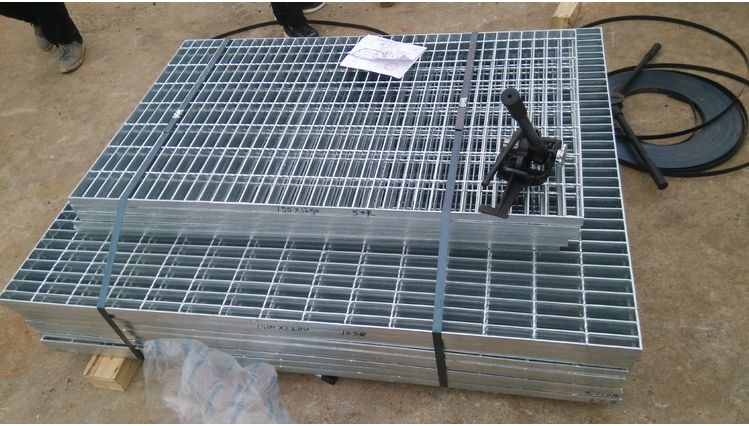

Packaging

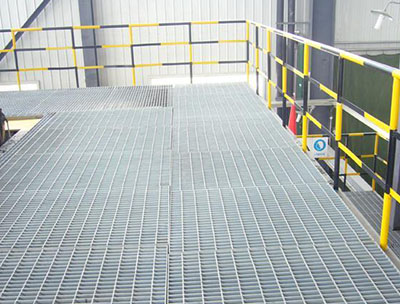

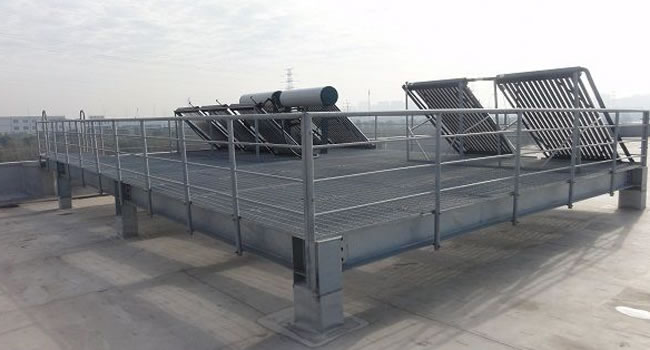

Product application
FAQ
1. Sample service
Yes, we can provide free samples to my clients.
2. How many days will the samples be finished?
Generally the samples will be sent immediately by the air express
in 2~3 days if the goods are in stock.
3.What are the common size of floor steel grating ?
-The pitch of bearing bar is 30-45mm in common,is largely used in
industrial field.
-The pitch of cross bar is 100mm and it is the most economical and
lightest type.
-The sewage grating with the pitch of 30mm between bearing bar and
of 100mm between cross bar
is the most popular type used at home and outside.
4. Quality Guarantee?
2 weeks to return if there are any problems.
5. Different quanity for different prices?
we will offer you less 3% discount for 40' HQ container's than 20'
HQ container's
6. Payment
30% by T/T in advance, 70% before shipment.
