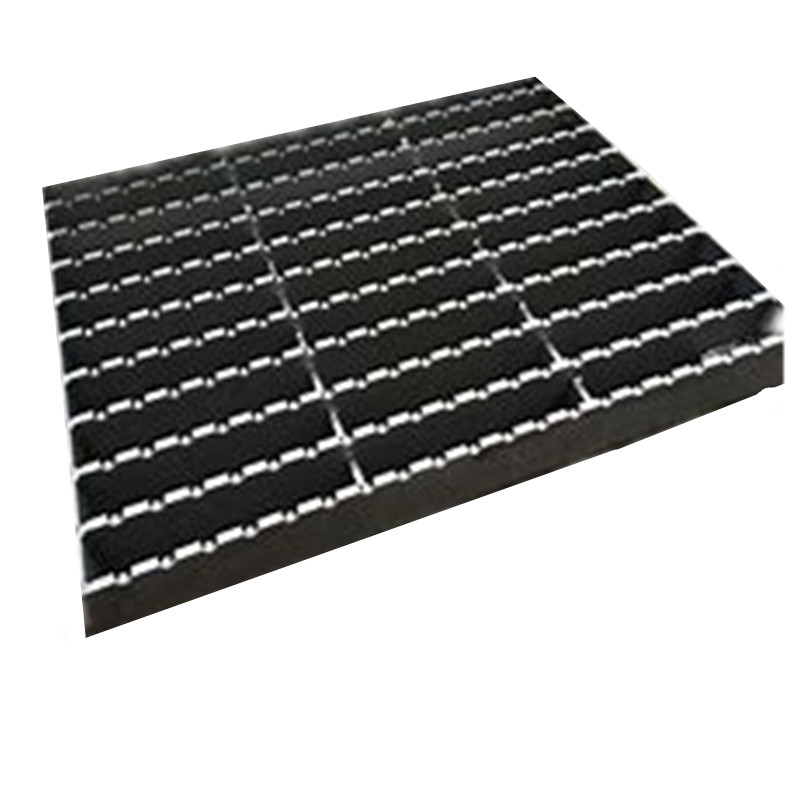

High Quality Metal Bar Safety Steel Grating Step With Hot Dipped
Galvanized Steel Grating
High Quality Galvanized Serrated Steel Bar Grating Professional
Supplier
Metal Bar Grating is the workhorse of the industrial flooring
market and has served industry for decades. Strong and durable with
an exceptional strength-to-weight ratio, metal bar grating can be
easily fabricated to nearly any configuration. The high percentage
of open area makes bar grating nearly maintenance free and all
products are fully recyclable.
Specificatin:
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1)Bearing bar shapes: plain or serrated or I bar type.
2)Bearing Bar Pitch (center to center): 30, 40, 60mm are
recommended,but we can also do it under customer's request.
3)Bearing Bar (Load Bar) Specifications (mm):The
specification(thickness of bearing bar)of plain type and serrated
type is 20 x 3 to 100 x 10;
4)Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 et
Bearing bar specification | 20 x 3mm to 100 x 6mm |
Bearing bar pitch | 12.5/15/30/ 40/60mm,other size customized. 30/40/60mm are
recommended |
Cross bar pitch | 38/50/76/100mm, other size customized. 50/100mm are recommended |
Material | Mild steel or stainless steel |
Surface treatment | Untreated, painted or hot dipped galvanized |
Application:

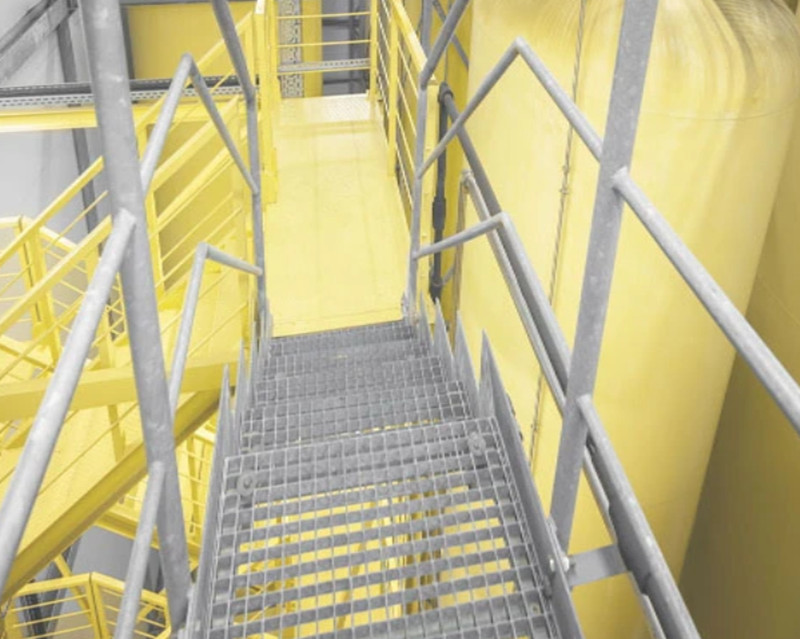

A. Flooring Stairs, stair treads and crossover platforms
B. Sewage drain covers, manhole covers, fork lift traffic and
loading ramps
C. Racks and shelving Fire escapes, light guards and loading ramps
D. Mezzanines and platforms
E. Infill panels
F. Vessel internals and catalyst support grids
G. Bridge sidewalks and bridge decking
H. Architectural uses like building facades or partitions I.
Security screens in residential and commercial buildings
